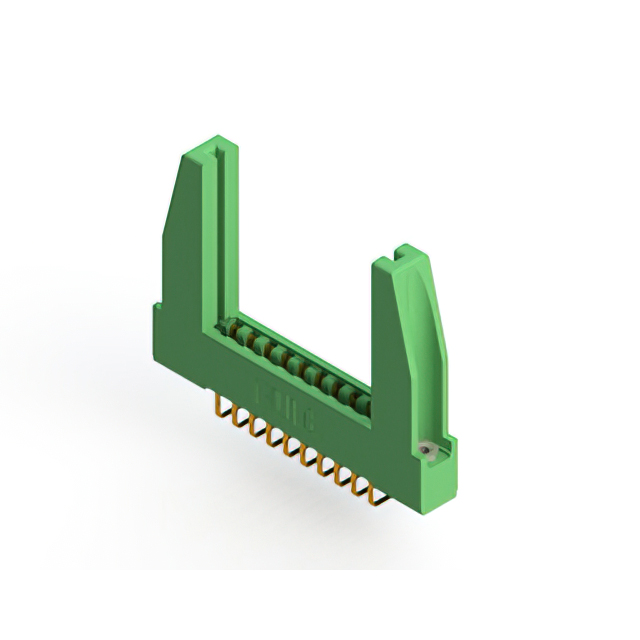

307-010-559-178

Active

EDAC Inc.

CONN EDGE SGL FMALE 10POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-010-559-178

Active

EDAC Inc.

CONN EDGE SGL FMALE 10POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-010-559-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions/Bay/Row [custom]	10
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-010 Series

...

Part	Contact Material	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Material - Insulation	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Gender	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Termination	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 307-010-559-103	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Single	10 Áin	0.25 Ám	1	0.116 in	Floating Bobbin Flush Mount	2.95 mm	1	Semi Bellows	-40 °C	105 ░C	Non Specified - Single Edge	Female	0.156 in	3.96 mm	Through Hole Right Angle	10	Solder	10
EDAC Inc. 307-010-458-103	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Single			1	0.116 in	Floating Bobbin Flush Mount	2.95 mm	1	Semi Bellows	-40 °C	105 ░C	Non Specified - Single Edge	Female	0.156 in	3.96 mm	Through Hole Right Angle	10	Solder	10
EDAC Inc. 307-010-453-104	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Dual			2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	1	Semi Bellows	-40 °C	105 ░C	Non Specified - Dual Edge	Female	0.156 in	3.96 mm	Through Hole Right Angle	20	Solder	10
EDAC Inc. 307-010-559-178	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Single	10 Áin	0.25 Ám	1		4-40 Flush Mount Threaded Insert Top Opening		1	Semi Bellows	-40 °C	105 ░C	Non Specified - Single Edge	Female	0.156 in	3.96 mm	Through Hole Right Angle	10	Solder	10	Card Guides
EDAC Inc. 307-010-557-168	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	2		4-40 Flush Mount Threaded Insert Top Opening		1	Semi Bellows	-40 °C	105 ░C	Non Specified - Dual Edge	Female	0.156 in	3.96 mm	Through Hole Right Angle	20	Wire Wrap	10	Card Guides
EDAC Inc. 307-010-431-178	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Single			1		4-40 Flush Mount Threaded Insert Top Opening		1	Semi Bellows	-40 °C	105 ░C	Non Specified - Single Edge	Female	0.156 in	3.96 mm	Through Hole	10	Solder	10	Card Guides
EDAC Inc. 307-010-554-102	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	1	Semi Bellows	-40 °C	105 ░C	Non Specified - Dual Edge	Female	0.156 in	3.96 mm	Surface Mount	20	Solder Eyelet(s)	10
EDAC Inc. 307-010-547-108	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Single	10 Áin	0.25 Ám	1		4-40 Flush Mount Threaded Insert Top Opening		1	Semi Bellows	-40 °C	105 ░C	Non Specified - Single Edge	Female	0.156 in	3.96 mm	Through Hole	10	Wire Wrap	10
EDAC Inc. 307-010-557-107	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Dual	10 Áin	0.25 Ám	2		Flush Mount M3 Threaded Insert Top Opening		1	Semi Bellows	-40 °C	105 ░C	Non Specified - Dual Edge	Female	0.156 in	3.96 mm	Through Hole Right Angle	20	Wire Wrap	10
EDAC Inc. 307-010-405-158	Copper Alloy	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Polyester Thermoplastic	Single			1		4-40 Flush Mount Threaded Insert Top Opening		1	Semi Bellows	-40 °C	105 ░C	Non Specified - Single Edge	Female	0.156 in	3.96 mm	Through Hole	10	Solder Eyelet(s)	10	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.59

Description

General part information

307-010 Series

10 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
