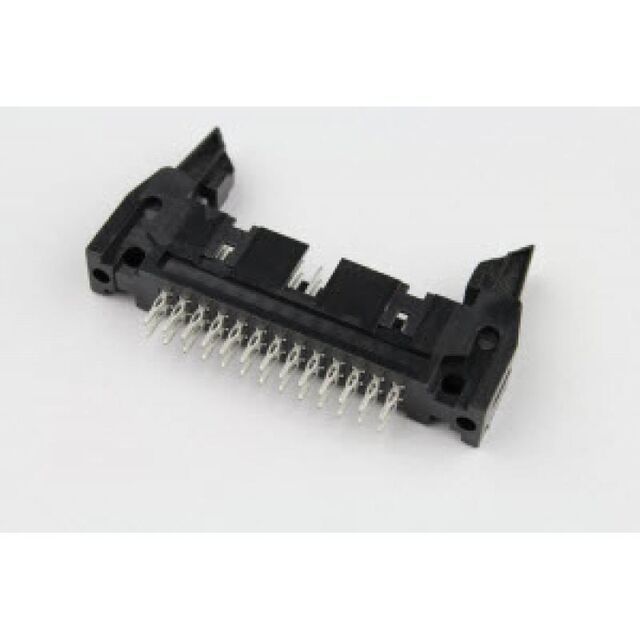

AWHW-254-26-PP3

Active

Assmann WSW Components

DIN 41651 HEADER MALE PRESS-FIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWHW-254-26-PP3

Active

Assmann WSW Components

DIN 41651 HEADER MALE PRESS-FIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW-254-26-PP3

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post [x]	0.181 in
Contact Length - Post [x]	4.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Height	1.087 in
Insulation Height	27.6 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Press-Fit

AWHW-254-26 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Connector Type	Shrouding	Current Rating (Amps)	Insulation Color	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Number of Positions Loaded	Contact Shape	Contact Material	Contact Length - Mating	Contact Length - Mating	Features	Contact Length - Post [x]	Contact Finish - Post
Assmann WSW Components AWHW-254-26TP13	2.54 mm	0.1 in	Latch Lock/Eject Hooks	0.1 in	2.54 mm	Board to Cable/Wire	-40 °C	105 ░C	Gold	Solder	Header	Shrouded - 4 Wall	3 A	Black	UL94 V-0	Male Pin	Flash	Through Hole Right Angle	26	0.427 in	10.85 mm	Polyamide (PA9T) Nylon 9T Glass Filled	2	3.2 mm	0.126 in	All	Square	Brass	6 mm	0.236 in
Assmann WSW Components AWHW-254-26ST12	2.54 mm	0.1 in	Latch Lock/Eject Hooks Long	0.1 in	2.54 mm	Board to Cable/Wire	-40 °C	105 ░C	Gold	Solder	Header	Shrouded - 4 Wall		Black	UL94 V-0	Male Pin	Flash	Surface Mount	26	0.87 in	22.1 mm	Polyamide (PA9T) Nylon 9T Glass Filled	2			All	Square	Brass	6 mm	0.236 in	Keying Slot
Assmann WSW Components AWHW-254-26TP10
Assmann WSW Components AWHW-254-26-PP3	2.54 mm	0.1 in	Push-Pull	0.1 in	2.54 mm	Board to Cable/Wire	-40 °C	105 ░C	Gold	Press-Fit	Header	Shrouded - 4 Wall	3 A		UL94 V-0	Male Pin	Flash	Through Hole	26	1.087 in	27.6 mm	Polybutylene Terephthalate (PBT) Glass Filled	2		0.181 in	All	Square	Brass	6 mm	0.236 in	Keying Slot	4.6 mm	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1600	$ 2.60

Description

General part information

AWHW-254-26 Series

Connector Header Through Hole 26 position 0.100" (2.54mm)
