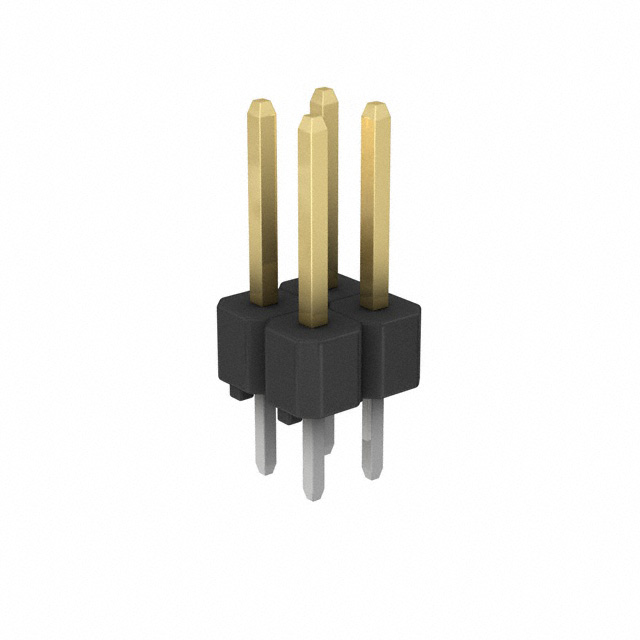

A1-4PA-2.54DSA(71)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	A1-4PA-2.54DSA(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.54 mm
Overall Contact Length	0.454 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

Part	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Height	Insulation Height	Contact Material	Shrouding	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Style	Insulation Color	Contact Shape	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Termination	Material Flammability Rating
Hirose Electric USA, Inc. A1-4PA-2.54DSA(71)	2	2.54 mm	0.1 in	200 V	Gold	0.203 Ám	8 Áin	Push-Pull	0.1 in	2.54 mm	Brass	Unshrouded	Header	0.118 in	3 mm	2 çm	78.7 çin	Tin	4	85 °C	-55 °C	Board to Board Cable	Black	Square	All	Male Pin	3 A	Through Hole	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	11.54 mm	0.454 in	Solder	UL94 V-0
