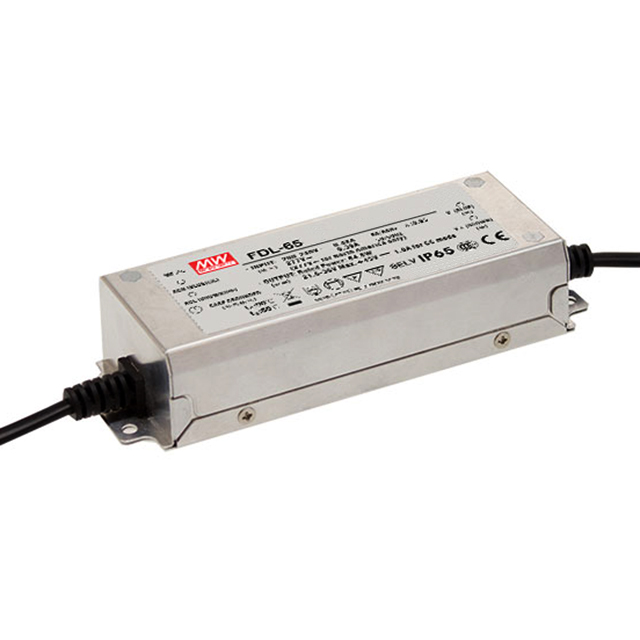

FDL-65-1800
ObsoleteMEAN WELL USA Inc.
LED DRVR CC AC/DC 21.6-36V 1.8A
FDL-65-1800
ObsoleteMEAN WELL USA Inc.
LED DRVR CC AC/DC 21.6-36V 1.8A
Description
General part information
FDL-65 Series
1.8A 21.6 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | FDL-65-1800 |
|---|---|
| Approval Agency | CE, CCC |
| Current - Output (Max) | 1.8 A |
| Efficiency | 90 % |
| Features | SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 65 W |
| Ratings | IP65 |
| Size / Dimension Height | 1.24 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 2.09 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) | 295 VAC |
| Voltage - Input (Min) | 180 V |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min) | 21.6 V |
