AWH 10G-0202-IDC

Active

Assmann WSW Components

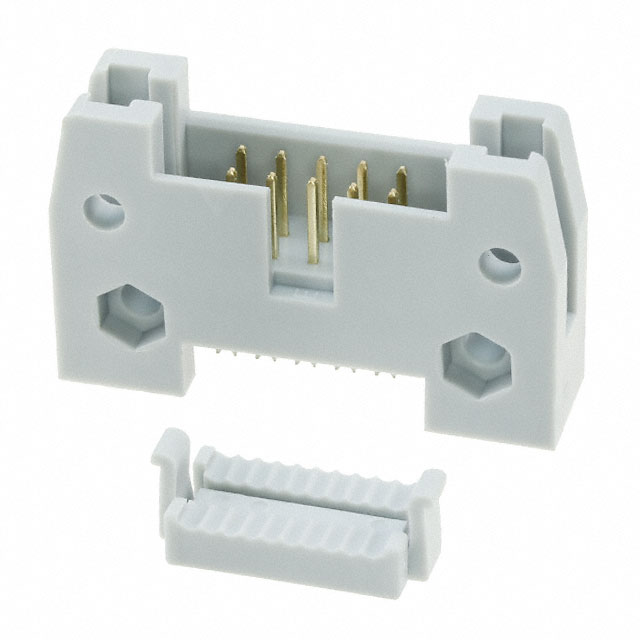

CONN HEADER 10POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWH 10G-0202-IDC

Active

Assmann WSW Components

CONN HEADER 10POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWH 10G-0202-IDC

Cable Termination	IDC
Color	Gray
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Contact Type	Male Pin
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

AWH 10G Series

Part	Contact Length - Post	Contact Length - Post	Contact Shape	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Termination	Shrouding	Features	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Type	Insulation Material	Number of Positions Loaded	Material Flammability Rating	Style	Number of Rows	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Material	Row Spacing [x]	Row Spacing	Wire Type	Cable Termination	Contact Finish	Pitch [x]	Pitch [x]	Color	Contact Finish Thickness	Contact Finish Thickness
Assmann WSW Components AWH 10G-0202-T	0.13 in	3.3 mm	Square	Through Hole	2.54 mm	0.1 in	Gray	3 A	Tin	0.1 in	2.54 mm	Gold	Solder	Shrouded - 4 Wall	Keying Slot	17 mm	0.669 "	10	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	All	UL94 V-0	Board to Cable/Wire	2	Header	Push-Pull	-40 °C	105 ░C	Flash	Brass
Assmann WSW Components AWH 10G-0232-IDC				Free Hanging (In-Line)											Feed Through			10	Male Pin					2	Header	Latch Lock/Eject Hooks Long					0.1 in	2.54 mm	Ribbon Cable	IDC	Gold	2.54 mm	0.1 in	Gray
Assmann WSW Components AWH 10G-0222-T	0.13 in	3.3 mm	Square	Through Hole	2.54 mm	0.1 in	Gray	3 A	Tin	0.1 in	2.54 mm	Gold	Solder	Shrouded - 4 Wall	Keying Slot	17 mm	0.669 "	10	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	All	UL94 V-0	Board to Cable/Wire	2	Header	Latch Lock/Eject Hooks Short	-40 °C	105 ░C	Flash	Brass
Assmann WSW Components AWH10G-0232-IDC-R				Free Hanging (In-Line)											Feed Through			10	Male Pin					2	Header	Latch Lock/Eject Hooks Long					0.1 in	2.54 mm	Ribbon Cable	IDC	Gold	2.54 mm	0.1 in	Gray
Assmann WSW Components AWH 10G-0202-IDC				Free Hanging (In-Line) Right Angle											Feed Through Polarizing Key			10	Male Pin					2	Header						0.1 in	2.54 mm	Ribbon Cable	IDC	Gold	2.54 mm	0.1 in	Gray	0.025 µm	1 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.32
		18	$ 3.01
		108	$ 2.65
		504	$ 2.26
		1008	$ 1.92
		5004	$ 1.73

Description

General part information

AWH 10G Series

10 Position Rectangular Header Connector IDC Gold

Documents

Technical documentation and resources
