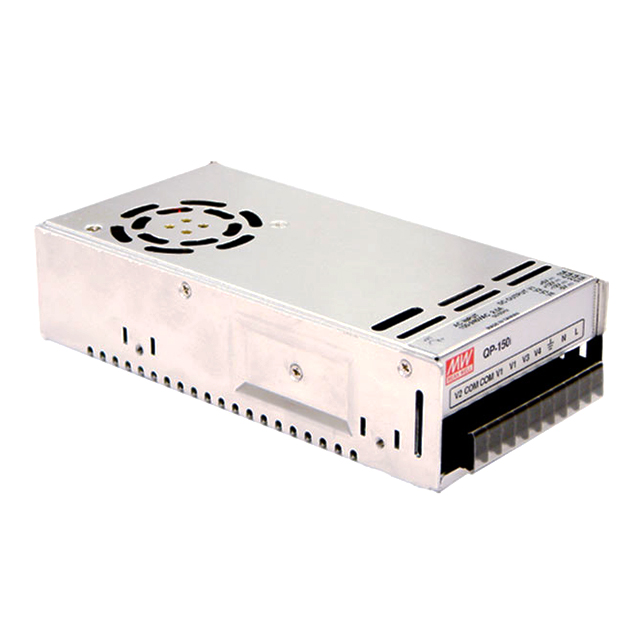

QP-150D

Active

MEAN WELL USA Inc.

AC/DC CNVRT 5V 12V 24V -12V 153W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CNVRT 5V 12V 24V -12V 153W

Technical Specifications

Parameters and characteristics for this part

Specification	QP-150D

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	10 A
Current - Output 2	4 A
Current - Output 3	2 A
Current - Output 4	600 mA
Efficiency	78 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	153 W
Size / Dimension [x]	7.83 in
Size / Dimension [x]	199 mm
Size / Dimension [y]	3.9 in
Size / Dimension [y]	99 mm
Size / Dimension [z]	50 mm
Size / Dimension [z]	1.97 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	24 V

Part	Approval Agency	Mounting Type	Voltage - Output 1	Current - Output 2	Voltage - Output 2	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Current - Output 4	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Efficiency	Current - Output 3	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Applications	Voltage - Isolation	Current - Output 1	Voltage - Output 3
MEAN WELL USA Inc. QP-150-3B	CB CE cURus TUV	Chassis Mount	5 V	10 A	3.3 V		-10 °C	60 °C	Enclosed	Adjustable Output PFC Universal Input	600 mA	90 VAC 127 VDC	264 VAC 370 VDC	150 W	75 %	5 A	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm	4	ITE (Commercial)	3000 V	10 A	12 V
MEAN WELL USA Inc. QP-150D	CB CE cURus TUV	Chassis Mount	5 V	4 A	12 V		-10 °C	60 °C	Enclosed	Adjustable Output PFC Universal Input	600 mA	90 VAC 127 VDC	264 VAC 370 VDC	153 W	78 %	2 A	50 mm	7.83 in	3.9 in	1.97 "	99 mm	199 mm	4	ITE (Commercial)	3000 V	10 A	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 4 Output 5V 12V 24V -12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
