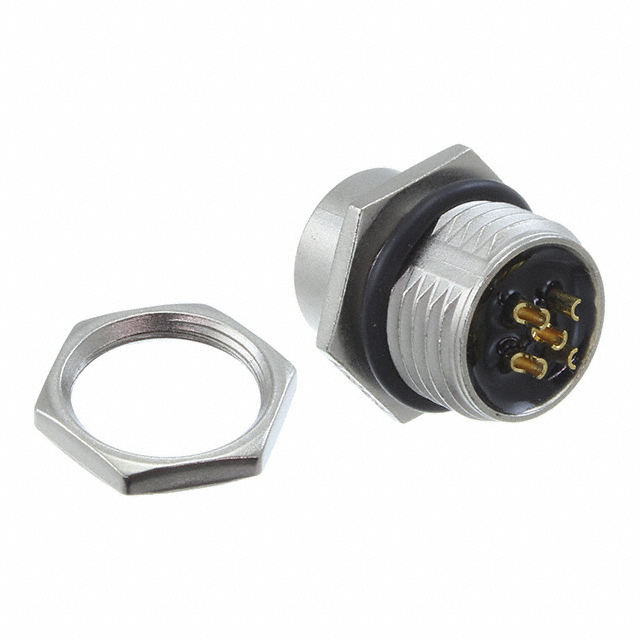

M12A-05PFFS-SH8001
ActiveAmphenol LTW
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
M12A-05PFFS-SH8001
ActiveAmphenol LTW
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-05PFFS-SH8001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.45 | |
| 10 | $ 8.51 | |||
| 25 | $ 8.02 | |||
| 50 | $ 7.81 | |||
| 100 | $ 7.60 | |||
| 250 | $ 6.78 | |||
| 450 | $ 6.37 | |||
| 950 | $ 5.63 | |||
Description
General part information
M12A-05PFFS Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
No documents available
