QS3PB-AU

Active

AMPHENOL AUDIO

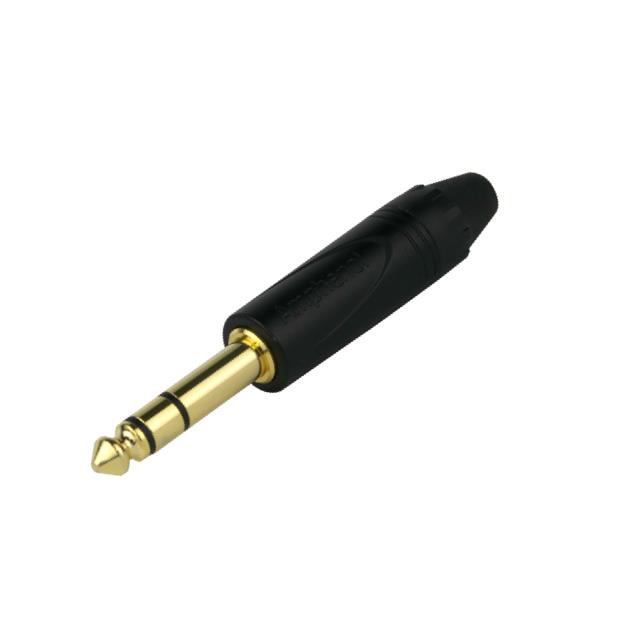

PHONE AUDIO CONNECTOR, 3 CONTACTS, PLUG, 6.32 MM, CABLE MOUNT, GOLD PLATED CONTACTS

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

PHONE AUDIO CONNECTOR, 3 CONTACTS, PLUG, 6.32 MM, CABLE MOUNT, GOLD PLATED CONTACTS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)

Technical documentation and resources

Specification	QS3PB-AU	QS3 Series

Actual Diameter [diameter]	0.249 in	0.249 in
Actual Diameter [diameter]	6.32 mm	6.32 mm
Body Color	Gold, Black	Gold, Black, Silver
Cable Opening [Max] [custom]	0.276 in	0.276 in
Cable Opening [Max] [custom]	7 mm	7 mm
Cable Opening [Min] [custom]	3 mm	3 mm
Cable Opening [Min] [custom]	0.118 in	0.118 in
Connector Type	Phone Plug	Phone Plug
Contact Material	Brass	Brass
Contact Material - Plating	-	Nickel
Contact Material - Plating [custom]	Gold	Gold
Current Rating (Amps)	10 A	10 A
Gender	Male	Male
Housing Material	Zinc Alloy	Zinc Alloy
Includes	4 pcs - 1 Connector, 1 Strain Relief, 2 pc Cover	4 pcs - 1 Connector, 1 Strain Relief, 2 pc Cover
Internal Switch(s)	False	False
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shielding	Unshielded	Unshielded, Shielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

Part	Internal Switch(s)	Contact Material - Plating [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mounting Type	Connector Type	Signal Lines	Body Color	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Termination	Housing Material	Includes	Contact Material - Plating [custom]
AMPHENOL AUDIO QS3PB-AU		Gold	0.249 in	6.32 mm	Unshielded	3	3	Free Hanging (In-Line)	Phone Plug	Stereo	Black, Gold	10 A	3 mm	0.276 in	7 mm	0.118 in	Brass	-25 °C	75 ░C	Male	Solder Eyelet(s)	Zinc Alloy	1 Strain Relief, 2 pc Cover, 4 pcs - 1 Connector
AMPHENOL AUDIO QS3P			0.249 in	6.32 mm	Shielded	3	3	Free Hanging (In-Line)	Phone Plug	Stereo	Black, Silver	10 A	3 mm	0.276 in	7 mm	0.118 in	Brass	-25 °C	75 ░C	Male	Solder Eyelet(s)	Zinc Alloy	1 Strain Relief, 2 pc Cover, 4 pcs - 1 Connector	Nickel
