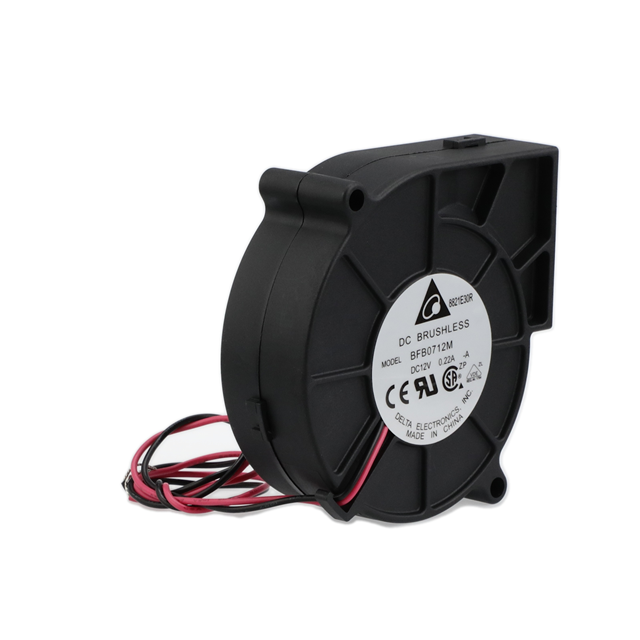

BFB0712M-A

Active

Delta Electronics

FAN BLOWER 75.7X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BFB0712M-A

Active

Delta Electronics

FAN BLOWER 75.7X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB0712M-A

Air Flow	0.316 m³/min
Air Flow	11.3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	43 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.92 W
RPM	3400 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	75.7 mm
Size / Dimension [z]	75.7 mm
Static Pressure	119.1 Pa
Static Pressure	0.478 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	90.26 g
Weight	0.199 lb
Width [y]	25 mm

BFB0712 Series

Part	Air Flow	Air Flow	Power (Watts)	Lifetime @ Temp.	Termination	Static Pressure	Static Pressure	Voltage - Rated	Current Rating (Amps)	Noise	RPM	Approval Agency	Material - Blade	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Bearing Type	Weight	Weight	Features
Delta Electronics BFB0712H	0.316 m³/min	11.3 CFM	2.64 W	50000 Hrs	2 Wire Leads	0.48 in H2O	119.6 Pa	12 VDC	0.22 A	38 dB(A)	2900 RPM	CE CSA UL VDE	Plastic	30 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	60 °C	60 °C	Blower	7 V	13.8 VDC	Plastic	Ball
Delta Electronics BFB0712M-AF00	0.316 m³/min	11.3 CFM	1.92 W	50000 Hrs	3 Wire Leads	0.478 in H2O	119.1 Pa	12 VDC		43 dB	3400 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712HH-AF00	0.428 m³/min	15.3 CFM		50000 Hrs	3 Wire Leads	0.977 in H2O	243.4 Pa	12 VDC	0.34 A	51 dB(A)	4400 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712H-AF00	0.386 mł/min	13.8 CFM	3.24 W	50000 Hrs	3 Wire Leads	0.773 in H2O	192.5 Pa	12 VDC	270 mA	48 dB	4000 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712L-AF00			1.2 W	50000 Hrs	3 Wire Leads	0.286 in H2O	71.2 Pa	12 VDC	100 mA	39 dB(A)	2800 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712HH-AR00	0.428 m³/min	15.3 CFM		50000 Hrs	3 Wire Leads	0.977 in H2O	243.4 Pa	12 VDC	0.34 A	51 dB(A)	4400 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb	Locked Rotor Sensor
Delta Electronics BFB0712M-A	0.316 m³/min	11.3 CFM	1.92 W	50000 Hrs	2 Wire Leads	0.478 in H2O	119.1 Pa	12 VDC		43 dB	3400 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb
Delta Electronics BFB0712H-F00	0.316 m³/min	11.3 CFM	2.64 W	50000 Hrs	3 Wire Leads	0.48 in H2O	119.6 Pa	12 VDC	0.22 A	38 dB(A)	2900 RPM	CE CSA UL VDE	Plastic	30 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	60 °C	60 °C	Blower	7 V	13.8 VDC	Plastic	Ball			Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0712H-A	0.386 mł/min	13.8 CFM	3.24 W	50000 Hrs	2 Wire Leads	0.773 in H2O	192.5 Pa	12 VDC	270 mA	48 dB	4000 RPM	CE CSA UL VDE	Plastic	25 mm	75.7 mm	75.7 mm	Square/Rounded	-10 °C	-10 °C	70 °C	70 °C	Blower	7 V	13.8 VDC	Plastic	Ball	90.26 g	0.199 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	324	$ 13.00

Description

General part information

BFB0712 Series

Fan Blower 12VDC Square/Rounded - 75.7mm L x 75.7mm H Ball 11.3 CFM (0.316m³/min) 2 Wire Leads
