TMC2100-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR TMC2100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC2100-EVAL-KIT
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR TMC2100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC2100-EVAL-KIT | TMC2100 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 1.2 - 1.4 A |
| Embedded | MCU, 32-Bit | MCU, 32-Bit |
| Embedded | True | True |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Logic |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 48-TQFP Exposed Pad, 36-VFQFN Exposed Pad |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-TQFP, 36-QFN (5x6) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC2100 | TMC2100 |
| Voltage - Load | - | 46 V |
| Voltage - Load | - | 5.5 V |
| Voltage - Supply | - | 46 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 133.24 | |
TMC2100 Series
IC MTR DRV BIPOLAR 5.5-46V 48QFP
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Step Resolution [Max] | Step Resolution [Min] | Output Configuration | Package / Case | Current - Output | Technology | Applications | Supplier Device Package | Function | Voltage - Load [Max] | Voltage - Load [Min] | Interface | Motor Type - Stepper | Voltage - Supply [Max] | Voltage - Supply [Min] | Supplied Contents | Contents | Embedded | Embedded | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC2100-TA-T | Surface Mount | -40 °C | 125 ¯C | 1 | 0.00390625 | Half Bridge (4) | 48-TQFP Exposed Pad | 1.4 A | Power MOSFET | General Purpose | 48-TQFP | Driver - Fully Integrated, Control and Power Stage | 46 V | 5.5 V | Logic | Bipolar | 46 V | 5.5 V | ||||||
Analog Devices Inc./Maxim Integrated TMC2100-EVAL-KIT | Board(s) | Board(s) | 32-Bit, MCU | Power Management | TMC2100 | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC2100-LA-T | Surface Mount | -40 °C | 125 ¯C | 1 | 0.00390625 | Half Bridge (4) | 36-VFQFN Exposed Pad | 1.2 A | Power MOSFET | General Purpose | 36-QFN (5x6) | Driver - Fully Integrated, Control and Power Stage | 46 V | 5.5 V | Logic | Bipolar | 46 V | 5.5 V |
Description
General part information
TMC2100 Series

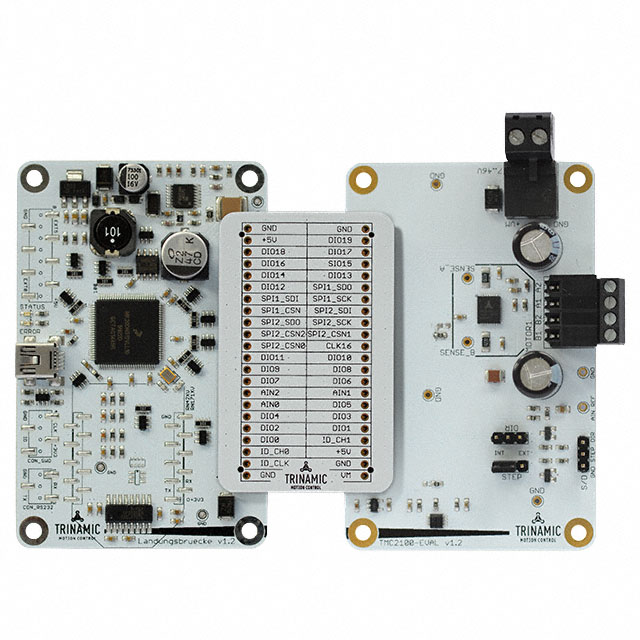

TMC2100 Motor Controller/Driver, Stepper Power Management Evaluation Board
