92-AMBER-7/8"X36YD

Active

3M (TC)

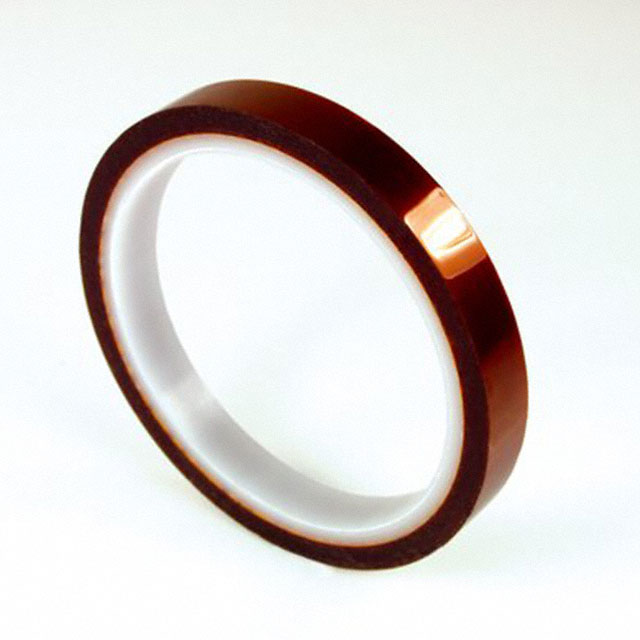

TAPE ELECTRICAL AMBER 7/8"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher Insulating, Conductive Tape Brochure +1

92-AMBER-7/8"X36YD

Active

3M (TC)

TAPE ELECTRICAL AMBER 7/8"X36YDS

Deep-Dive with AI

DocumentsDate Code Decipher Insulating, Conductive Tape Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	92-AMBER-7/8"X36YD

Adhesive	Silicone Thermosetting
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range [Max]	180 °C
Temperature Range [Max]	356 °F
Temperature Range [Min]	0 °C
Temperature Range [Min]	0 °C
Thickness	3 mils
Thickness	0.003 in
Thickness	0.076 mm
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Electrically Insulating
Width	0.88 in
Width	0.875 in
Width	22.35 mm

92-AMBER Series

Part	Shelf Life	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Color	Tape Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Shelf Life Start	Width [x]	Width [x]	Adhesive	Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness	Thickness	Thickness	Usage	Length	Length	Length	Width	Width	Width
3M (TC) 92-AMBER-1"X36YD	60 Months	0 °C	180 °C	0 °C	356 °F	Amber	Electrical	27 °C 80 °F	10 °C	2 mils	0.051 mm	0.002 "	Date of Manufacture	25.4 mm	1 in	Silicone Thermosetting	Polyimide	1 mils	0.025 mm	0.001 "	3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft
3M (TC) 92-AMBER-5/8"X36YD						Amber	Electrical									Silicone Thermosetting	Polyimide				3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft	0.625 in	0.63 in	16 mm
3M (TC) 92-AMBER-3/4"X36YD	60 Months	0 °C	180 °C	0 °C	356 °F	Amber	Electrical	27 °C 80 °F	10 °C	2 mils	0.051 mm	0.002 "	Date of Manufacture			Silicone Thermosetting	Polyimide	1 mils	0.025 mm	0.001 "	3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft	19.05 mm	0.75 in	0.75 in
3M (TC) 92-AMBER-1/4"X36YD	60 Months	0 °C	180 °C	0 °C	356 °F	Amber	Electrical	27 °C 80 °F	10 °C	2 mils	0.051 mm	0.002 "	Date of Manufacture			Silicone Thermosetting	Polyimide	1 mils	0.025 mm	0.001 "	3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft	0.25 in	0.25 in	6.35 mm
3M (TC) 92-AMBER-1/2"X36YD	60 Months	0 °C	180 °C	0 °C	356 °F	Amber	Electrical	27 °C 80 °F	10 °C	2 mils	0.051 mm	0.002 "	Date of Manufacture			Silicone Thermosetting	Polyimide	1 mils	0.025 mm	0.001 "	3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft	0.5 in	0.5 in	12.7 mm
3M (TC) 92-AMBER-3/8"X36YD						Amber	Electrical							9.52 mm	0.37 in	Silicone Thermosetting	Polyimide				3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft
3M (TC) 92-AMBER-7/8"X36YD	60 Months	0 °C	180 °C	0 °C	356 °F	Amber	Electrical	27 °C 80 °F	10 °C	2 mils	0.051 mm	0.002 "	Date of Manufacture			Silicone Thermosetting	Polyimide	1 mils	0.025 mm	0.001 "	3 mils	0.003 in	0.076 mm	Electrically Insulating	36 yd	32.9 m	108 ft	0.875 in	0.88 in	22.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	11	$ 81.75

Description

General part information

92-AMBER Series

Electrical Tape Silicone Thermosetting Adhesive Amber 0.88" (22.35mm) 7/8" X 108' (32.9m) 36 yds
