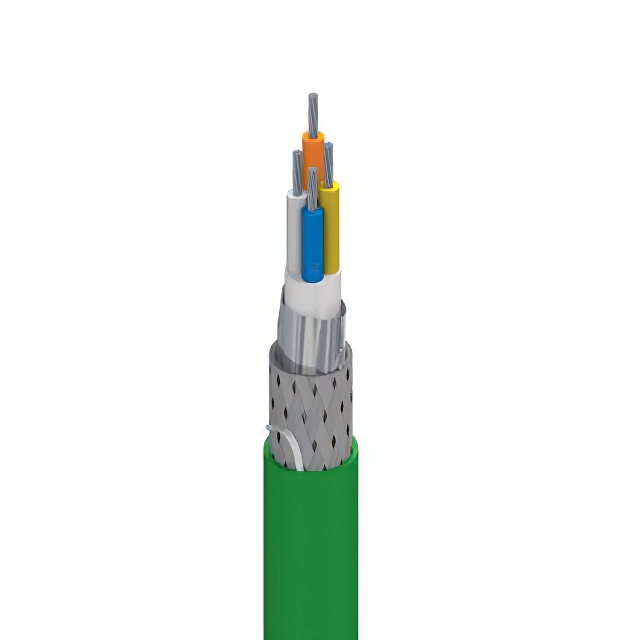

7961A 1SW1000

Active

Belden Inc.

CABLE CAT5E 4COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 4COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	7961A 1SW1000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Flame Retardant, Rip Cord, UV Resistant, Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 20626
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Cable Type	Features	Usage	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Ratings	Conductor Insulation	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length	Length
Belden Inc. 7961A 1SW1000	22 AWG	Multi-Pair Cat5e	Flame Retardant Oil Resistant Rip Cord UV Resistant	Industrial Network	Copper Tinned	300 V	0.272 in	6.91 mm	Green	Aluminum Copper Tinned	32 AWG	7	4	UL Style 20626	Polyolefin (PO)	Braid Foil	85 % 100 %	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair) Conductor Multi-Pair, Cat5e Cable Green 22 AWG Foil, Braid 1000.0' (304.8m)
