CY2907FX14

Obsolete

Infineon Technologies

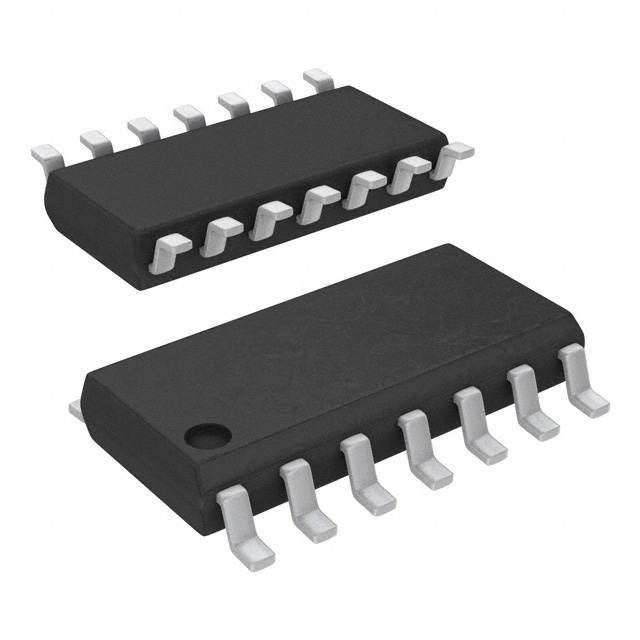

IC CLOCK GENERATOR 14SOIC

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC CLOCK GENERATOR 14SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	CY2907FX14

Differential - Input:Output	False
Divider/Multiplier	Yes/No
Frequency - Max [Max]	130 MHz
Input	Crystal, Clock
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output	Clock
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
PLL	Yes with Bypass
Ratio - Input:Output [custom]	1:2
Type	Fanout Distribution, Clock Generator
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

Part	Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Frequency - Max [Max]	Input	Divider/Multiplier	Operating Temperature [Max]	Operating Temperature [Min]	Output	PLL	Ratio - Input:Output [custom]	Number of Circuits	Differential - Input:Output
Infineon Technologies CY2907SL-262	Clock Generator	Surface Mount	3.6 V	3 V	8-SOIC	8-SOIC	3.9 mm	0.154 in
Infineon Technologies CY2907FX14	Clock Generator Fanout Distribution	Surface Mount	5.5 V	3 V		14-SOIC	3.9 mm	0.154 in	130 MHz	Clock Crystal	Yes/No	70 °C	0 °C	Clock	Yes with Bypass	1:2	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clock Generator, Fanout Distribution IC 130MHz 1 14-SOIC (0.154", 3.90mm Width)
