Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CCAL2H4658-X | CCAL2H Series |
|---|---|---|
| Color | Natural | Natural |
| Height [z] | 59.94 mm | 59.94 - 115.06 mm |
| Height [z] | 2.36 in | 2.36 - 4.53 in |
| Length | - | 5.18 - 5.71 " |
| Length | - | 131.57 - 174.5 mm |
| Length [x] | 4.52 " | 4.52 - 6.87 in |
| Length [x] | 114.81 mm | 114.81 mm |
| Material | Aluminum | Aluminum |
| Type | Clamp, Cleat | Clamp, Cleat |
| Type Attributes | Adjustable | Adjustable |
| Width | - | 44.45 - 45.97 mm |
| Width | - | 1.75 - 1.81 in |
| Width [y] | 42.93 mm | 42.93 - 49.02 mm |
| Width [y] | 1.69 in | 1.69 - 1.93 in |
CCAL2H Series

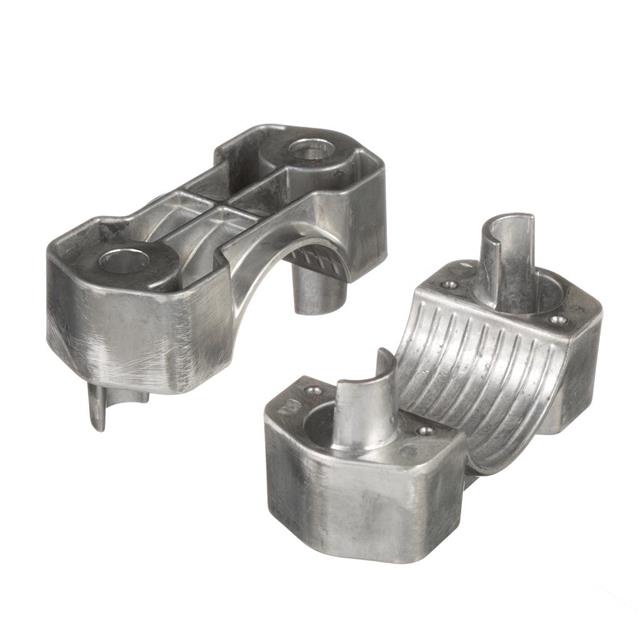

CABLE MOUNTING & ACCESSORIES CABLE CLEAT, ALUMINUM, 2-HOLE CONFIGURAT
| Part | Material | Length | Length | Color | Height [z] | Height [z] | Type | Width [x] | Width [x] | Type Attributes | Width [y] | Width [y] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp CCAL2H5870-X | Aluminum | 5.18 " | 131.57 mm | Natural | 72.9 mm | 2.87 in | Clamp, Cleat | 44.45 mm | 1.75 in | Adjustable | ||||
Panduit Corp CCAL2H97109-X | Aluminum | 174.5 mm | Natural | 115.06 mm | 4.53 in | Clamp, Cleat | Adjustable | 49.02 mm | 1.93 in | 6.87 in | ||||
Panduit Corp CCAL2H4658-X | Aluminum | Natural | 59.94 mm | 2.36 in | Clamp, Cleat | Adjustable | 42.93 mm | 1.69 in | 4.52 " | 114.81 mm | ||||
Panduit Corp CCAL2H7083-X | Aluminum | 5.71 in | 145.03 mm | Natural | 86.11 mm | 3.39 in | Clamp, Cleat | 45.97 mm | 1.81 in | Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCAL2H Series
Cable Clamp, Cleat Natural
Documents
Technical documentation and resources
