3071-72MMX100M

Active

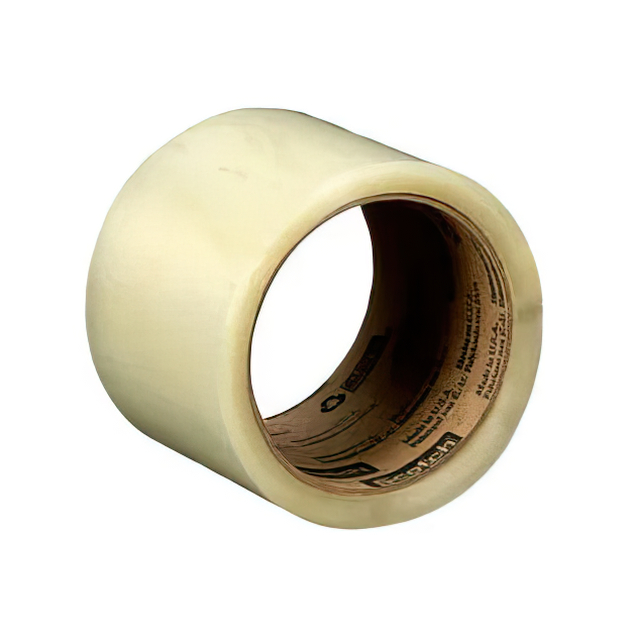

TAPE SEAL/SPLIC CLR 2.83"X110YD

Search across all available documentation for this part.

Active

TAPE SEAL/SPLIC CLR 2.83"X110YD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3071-72MMX100M	3071 Series

Adhesive	-	Rubber
Backing, Carrier	Polypropylene	Polypropylene
Color	Clear	Clear
Length	328 ft	328 ft
Length	109.3 yds	109.3 yds
Length	100 m	100 m
Length [x]	100.6 m	100.6 m
Length [x]	110 yds	110 yds
Length [x]	330 ft	330 ft
Shelf Life	18 Months	18 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	26 °C	26 °C
Storage/Refrigeration Temperature [Max]	79 °F	79 °F
Storage/Refrigeration Temperature [Min]	39 °F	39 °F
Storage/Refrigeration Temperature [Min]	4 °C	4 °C
Tape Type	Sealing, Splicing	Splicing, Sealing
Thickness	2.1 mils	2.1 mils
Thickness	0.053 mm	0.053 mm
Thickness	0.0021 in	0.0021 in
Thickness - Adhesive	0.02 mm	0.02 - 0.023 mm
Thickness - Adhesive	0.8 mils	0.8 - 0.9 mils
Thickness - Adhesive	0.0008 in	0.0008 - 0.0009 "
Thickness - Adhesive [custom]	0.021 mm	0.021 mm
Thickness - Adhesive [custom]	0.0008 "	0.0008 "
Thickness - Adhesive [custom]	0.8 mils	0.8 mils
Thickness - Backing, Carrier	1.2 mils	1.2 mils
Thickness - Backing, Carrier	0.0012 "	0.0012 "
Thickness - Backing, Carrier	0.03 mm	0.03 mm
Width [y]	72 mm	48 - 72 mm
Width [y]	2.83 "	1.89 - 2.83 in

TAPE SPLICING CLR 1.89"X109.3YDS

Part	Backing, Carrier	Length	Length	Length	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Adhesive	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life Start	Thickness	Thickness	Thickness	Width [y]	Width [y]	Length [x]	Length [x]	Length [x]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]
3M 3071-48MMX100M	Polypropylene	328 ft	109.3 yds	100 m	Clear	0.0009 "	0.9 mils	0.023 mm	26 °C	39 °F	79 °F	4 °C	18 Months	Rubber	Splicing	1.2 mils	0.0012 "	0.03 mm	Date of Manufacture	2.1 mils	0.053 mm	0.0021 in	48 mm	1.89 in
3M 3071-72MMX100M	Polypropylene	328 ft	109.3 yds	100 m	Clear	0.0008 in	0.8 mils	0.02 mm	26 °C	39 °F	79 °F	4 °C	18 Months		Sealing, Splicing	1.2 mils	0.0012 "	0.03 mm	Date of Manufacture	2.1 mils	0.053 mm	0.0021 in	72 mm	2.83 "	100.6 m	110 yds	330 ft	0.021 mm	0.0008 "	0.8 mils

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sealing, Splicing Tape Pressure Sensitive Adhesive (PSA) Adhesive Clear 2.83" (72.00mm) X 330' (100.6m) 110 yds
