R114075000

Active

Radiall USA, Inc.

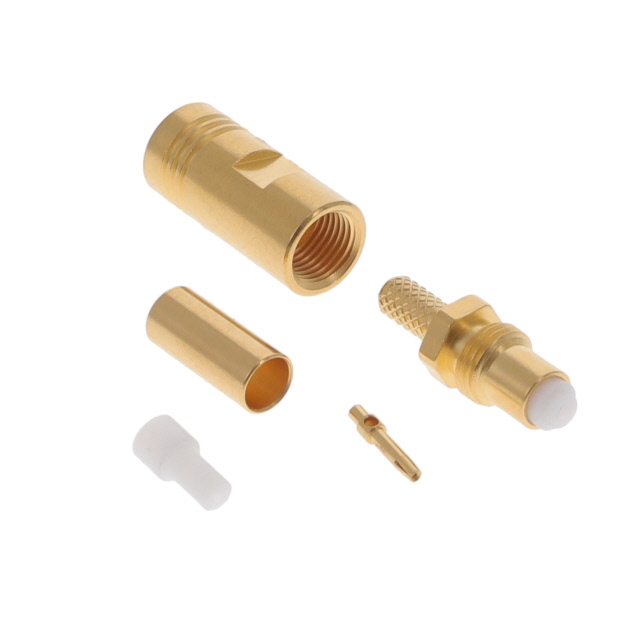

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMB CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R114075000

Body Finish	Gold
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Center Contact Plating	Fastening Type	Mounting Type	Contact Termination	Body Material	Number of Ports	Body Finish	Voltage Rating	Dielectric Material	Frequency - Max [Max]	Mating Cycles	Center Contact Material	Shield Termination	Connector Type	Housing Color	Impedance	Cable Group	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Includes
Radiall USA, Inc. R114075000W	Gold	Snap-On	Free Hanging (In-Line)	Crimp	Brass	1	Gold	335 V	Polytetrafluoroethylene (PTFE)	4 GHz	500	Beryllium Copper	Crimp	Female Socket Plug	Gold	50 Ohms	187 188 316 RG-179	SMB	-65 ░C	165 °C
Radiall USA, Inc. R114075000	Gold	Snap-On	Free Hanging (In-Line)	Crimp	Brass	1	Gold	335 V	Polytetrafluoroethylene (PTFE)	4 GHz	500	Beryllium Copper	Crimp	Female Socket Plug	Gold	50 Ohms	179 316 RG-174	SMB	-65 ░C	165 °C	1 Connector 1 Contact 1 Ferrule 1 Insulator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
