NSD15-12S5

Active

MEAN WELL USA Inc.

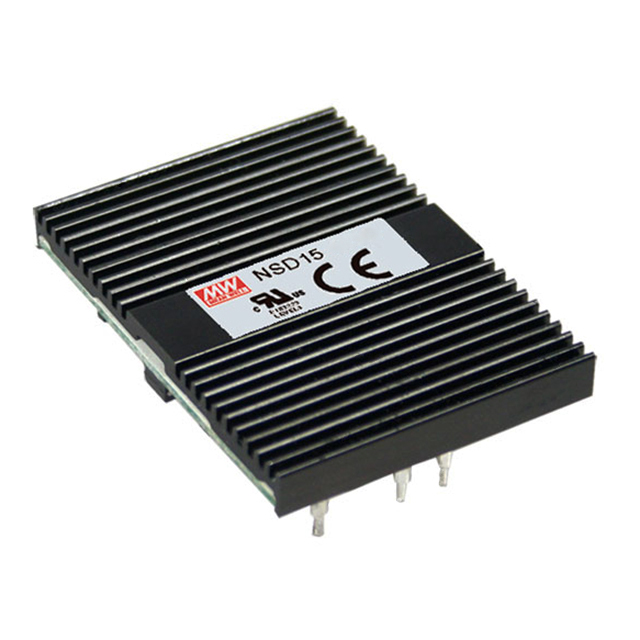

DC DC CONVERTER 5V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NSD15-12S5

Active

MEAN WELL USA Inc.

DC DC CONVERTER 5V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NSD15-12S5

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3 A
Efficiency	77 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	8-DIP Module, 6 Leads
Power (Watts)	15 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	1.5 in
Size / Dimension [y]	38.1 mm
Size / Dimension [z]	9.8 mm
Size / Dimension [z]	0.39 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9.4 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

NSD15 Series

Part	Voltage - Input (Min) [Min]	Applications	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Efficiency	Package / Case	Number of Outputs	Voltage - Output 2	Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Isolation	Current - Output (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. NSD15-12D5	9.4 V	ITE (Commercial)	1.5 A	1.5 A	15 W	36 V	5 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	76 %	8-DIP Module 7 Leads	2	-5 V	Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV
MEAN WELL USA Inc. NSD15-48S12	18 V	ITE (Commercial)			15 W	72 V	12 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	84 %	8-DIP Module 6 Leads	1		Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV	1.25 A
MEAN WELL USA Inc. NSD15-12S3	9.4 V	ITE (Commercial)			12 W	36 V	3.3 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	73 %	8-DIP Module 6 Leads	1		Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV	3.75 A
MEAN WELL USA Inc. NSD15-12D15	9.4 V	ITE (Commercial)	500 mA		15 W	36 V	15 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	80 %	8-DIP Module 7 Leads	2	-15 V	Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV		500 mA
MEAN WELL USA Inc. NSD15-12S15	9.4 V	ITE (Commercial)			15 W	36 V	15 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	81 %	8-DIP Module 6 Leads	1		Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV	1 A
MEAN WELL USA Inc. NSD15-48D5	18 V	ITE (Commercial)	1.5 A	1.5 A	15 W	72 V	5 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	80 %	8-DIP Module 7 Leads	2	-5 V	Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV
MEAN WELL USA Inc. NSD15-12S5	9.4 V	ITE (Commercial)			15 W	36 V	5 V	1.5 in	38.1 mm	9.8 mm	2 in	0.39 in	50.8 mm	Through Hole	77 %	8-DIP Module 6 Leads	1		Isolated Module	-25 °C	70 °C	OCP OVP Remote On/Off SCP	1.5 kV	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.41
		5	$ 14.53
		10	$ 14.16
		25	$ 13.69
		40	$ 13.46
		80	$ 13.12
		230	$ 12.85

Description

General part information

NSD15 Series

Isolated Module DC DC Converter 1 Output 5V 3A 9.4V - 36V Input
