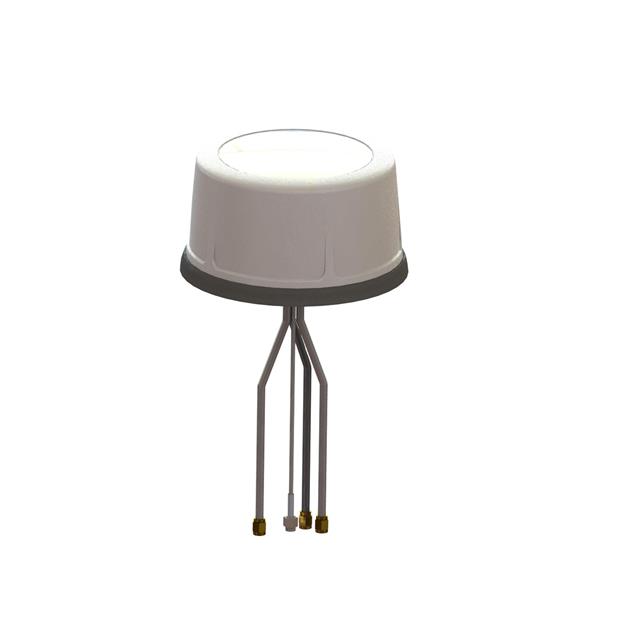

VLQ69273W22N-518A

Active

TE Connectivity Raychem Cable Protection

RF ANT 829MHZ/2.2GHZ DOME RP-SMA

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RF ANT 829MHZ/2.2GHZ DOME RP-SMA

Technical Specifications

Parameters and characteristics for this part

Part	Frequency Group	RF Family/Standard	Number of Bands	Power - Max [Max]	Gain	Applications	Antenna Type	Ingress Protection	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	VSWR	Termination
TE Connectivity Raychem Cable Protection VLQ69273B22N-518A	Wide Band	Cellular WiFi	3	50 W	6.3 dBi	LTE WLAN	Dome	IP67	2.2 GHz 5.4 GHz 829 MHz	2.953 in	75 mm	2.7 GHz 960 MHz	1.71 GHz 698 MHz	2	RP-SMA Male SMA Male
TE Connectivity Raychem Cable Protection VLQ69273B21G-518A	Wide Band	Cellular Navigation	3	50 W	5.5 dBi	GPS LTE	Dome	IP67	2.2 GHz 5.4 GHz 829 MHz	2.953 in	75 mm	2.7 GHz 5.9 GHz 960 MHz	1.7 GHz 4.9 GHz 698 MHz	2
TE Connectivity Raychem Cable Protection VLQ69273W21G-518A	Wide Band	Cellular Navigation	3	50 W	5.5 dBi	GPS LTE	Dome	IP67	2.2 GHz 5.4 GHz 829 MHz	2.953 in	75 mm	2.7 GHz 5.9 GHz 960 MHz	1.7 GHz 4.9 GHz 698 MHz	2
TE Connectivity Raychem Cable Protection VLQ69273B21G-30C	Wide Band	Cellular Navigation WiFi	3	50 W	5.5 dBi	GPS LTE WLAN	Dome	IP67	2.2 GHz 5.4 GHz 829 MHz	2.953 in	75 mm	2.7 GHz 5.9 GHz 960 MHz	1.7 GHz 4.9 GHz 698 MHz	2	RP-SMA Male SMA Male
TE Connectivity Raychem Cable Protection VLQ69273W22N-518A	Wide Band	Cellular WiFi	3	50 W	4.5 dBi	LTE WLAN	Dome	IP67	2.2 GHz 5.4 GHz 829 MHz	2.953 in	75 mm	2.7 GHz 960 MHz	1.71 GHz 698 MHz	2	RP-SMA Male SMA Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 168.02

General part information

RF ANTENNA LTE, WLAN Dome RP-SMA Male, SMA Male Panel Mount
