0135-0-15-01-30-27-04-0

Active

Mill-Max Manufacturing Corp.

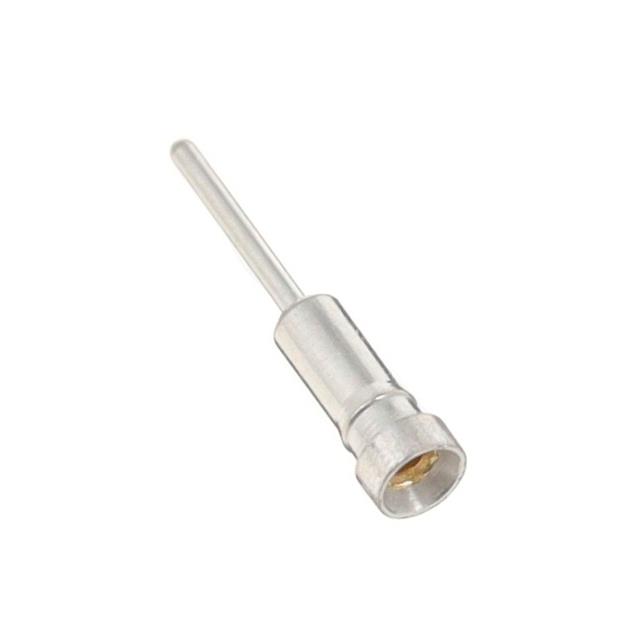

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0135-0-15-01-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.22
		10	$ 1.03
		25	$ 0.99
		50	$ 0.97
		100	$ 0.92
		250	$ 0.84
		500	$ 0.76
		1000	$ 0.67
		3000	$ 0.61

Description

General part information

0135-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0135-0-15-01-30-27-04-0	0135-0 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Tin-Lead, Gold, Tin
Contact Finish Thickness	0.76 Ám	0.25 - 2.54 µm
Contact Finish Thickness	30 Áin	10 - 100 µin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.83 mm	1.83 mm
Flange Diameter [diameter]	0.072 in	0.072 in
Length - Overall [x]	0.356 in	0.356 in
Length - Overall [x]	9.04 mm	9.04 mm
Mounting Hole Diameter [diameter]	0.057 "	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm	1.45 mm
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	3.81 mm	3.81 mm
Socket Depth	0.15 in	0.15 in
Tail Diameter [diameter]	0.02 in	0.02 in
Tail Diameter [diameter]	0.51 mm	0.51 mm
Tail Type	Standard Tail	Standard Tail
Termination	Press-Fit	Press-Fit

0135-0 Series

CONN PIN RCPT .015-.025 PRESSFIT

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Mill-Max Manufacturing Corp. 0135-0-15-01-30-02-04-0	Beryllium Copper	-55 °C	125 °C	Press-Fit	0.02 in	0.51 mm	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.356 in	9.04 mm	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	2.54 µm	100 µin	Tin-Lead
Mill-Max Manufacturing Corp. 0135-0-15-01-30-14-04-0	Beryllium Copper	-55 °C	125 °C	Press-Fit	0.02 in	0.51 mm	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.356 in	9.04 mm	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.25 Ám	10 Áin	Gold
Mill-Max Manufacturing Corp. 0135-0-15-15-30-14-04-0	Beryllium Copper	-55 °C	125 °C	Press-Fit	0.02 in	0.51 mm	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.356 in	9.04 mm	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.25 Ám	10 Áin	Gold
Mill-Max Manufacturing Corp. 0135-0-15-80-30-84-04-0	Beryllium Copper	-55 °C	125 °C	Press-Fit	0.02 in	0.51 mm	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.356 in	9.04 mm	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	2.54 µm	100 µin	Tin
Mill-Max Manufacturing Corp. 0135-0-15-01-30-27-04-0	Beryllium Copper	-55 °C	125 °C	Press-Fit	0.02 in	0.51 mm	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.356 in	9.04 mm	0.057 "	1.45 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	0.76 Ám	30 Áin	Gold
