HW1P-5Q4-R

Active

IDEC Corporation

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 22 MM, 15 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

HW1P-5Q4-R

Active

IDEC Corporation

LED PANEL MOUNT INDICATOR, PILOT LIGHT, RED, 24 V, 22 MM, 15 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.88
		5	$ 69.73
		10	$ 65.76
		25	$ 60.84
		50	$ 57.36
		100	$ 54.07
Newark	Each	1	$ 65.55
		5	$ 63.59
		10	$ 60.30

Description

General part information

HW1P-5Q4 Series

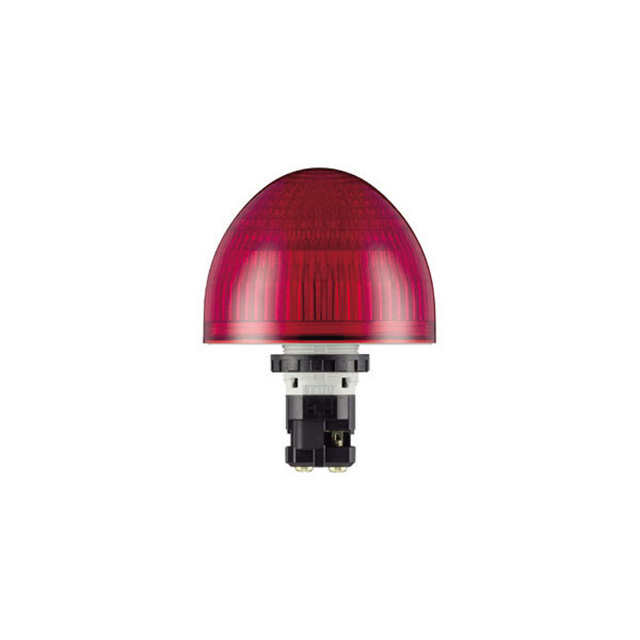

The HW1P-5Q4-R is a red panel-mount LED Pilot Light with jumbo dome lens and round plastic bezel. It offers full voltage illumination circuit and it is suitable for use with the Ø22mm HW series switches and pilot devices.

Specification	HW1P-5Q4-R	HW1P-5Q4 Series

Current	15 mA	15 mA
Ingress Protection	IP65	IP65
Lamp Color	Red	Red, Amber
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC/DC
Termination Style	Screw Terminal	Screw Terminal
Type	LED	LED
Voltage	24 V	24 V

Part	Lens Transparency	Current	Lens Style	Lamp Color	Ingress Protection	Type	Ratings	Termination Style	Panel Cutout Shape	Voltage
IDEC Corporation HW1P-5Q4-R	Diffused	15 mA	Round with Domed Top	Red	IP65	LED	AC/DC	Screw Terminal	Round	24 V
IDEC Corporation HW1P-5Q4-A	Diffused	15 mA	Round with Domed Top	Amber	IP65	LED	AC/DC	Screw Terminal	Round	24 V

HW1P-5Q4-R

Deep-Dive with AI

HW1P-5Q4-R

Deep-Dive with AI

Pricing

Description

HW1P-5Q4 Series

Documents

Datasheet

Technical Data Sheet EN

Technical Specifications

HW1P-5Q4 Series
