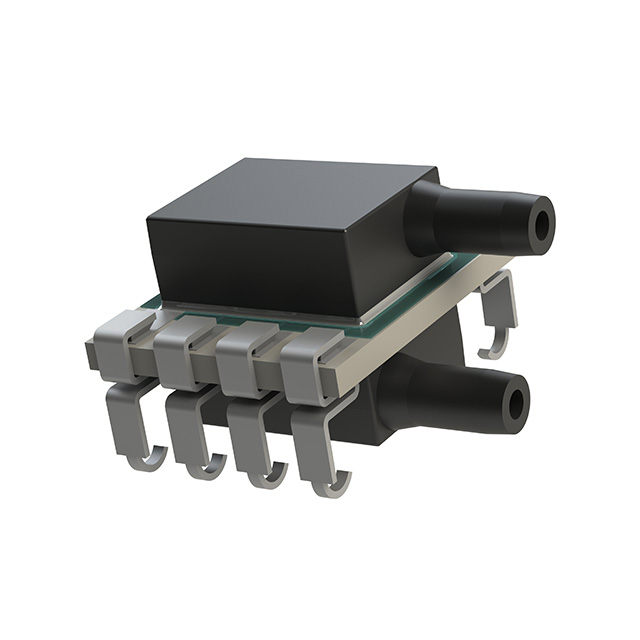

BPS110-AD01P0-2DG

Active

Bourns Inc.

SENSOR 1PSID 0.087" 4.5V 8SMD

Search across all available documentation for this part.

Active

Bourns Inc.

SENSOR 1PSID 0.087" 4.5V 8SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BPS110-AD01P0-2DG

Accuracy	0.25 %
Applications	Board Mount
Features	Amplified Output
Maximum Pressure	34.47 kPa
Maximum Pressure	5 PSI
Mounting Type	Surface Mount
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Dual Ports, J-Lead, 8-SMD, Same Side
Port Size	Dual, Male, Tube
Port Size	2.2 mm
Port Size	0.087 "
Port Style	Barbed
Pressure Type	Differential
Supplier Device Package	8-SMD
Termination Style	J Lead
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Termination Style	Maximum Pressure	Maximum Pressure	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Accuracy	Supplier Device Package	Port Size	Port Size	Port Size	Pressure Type	Output Type	Output [Min]	Output [Max]	Applications	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case
Bourns Inc. BPS110-AD01P0-2DG	J Lead	34.47 kPa	5 PSI	Surface Mount	2.7 V	5.5 V	Barbed	0.25 %	8-SMD	Dual Male Tube	2.2 mm	0.087 "	Differential	Analog Voltage	0.5 V	4.5 V	Board Mount	6.89 kPa	1 PSI	85 °C	-40 °C	Amplified Output	8-SMD Dual Ports J-Lead Same Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.087" (2.2mm) Tube, Dual 0.5 V ~ 4.5 V 8-SMD, J-Lead, Dual Ports, Same Side
