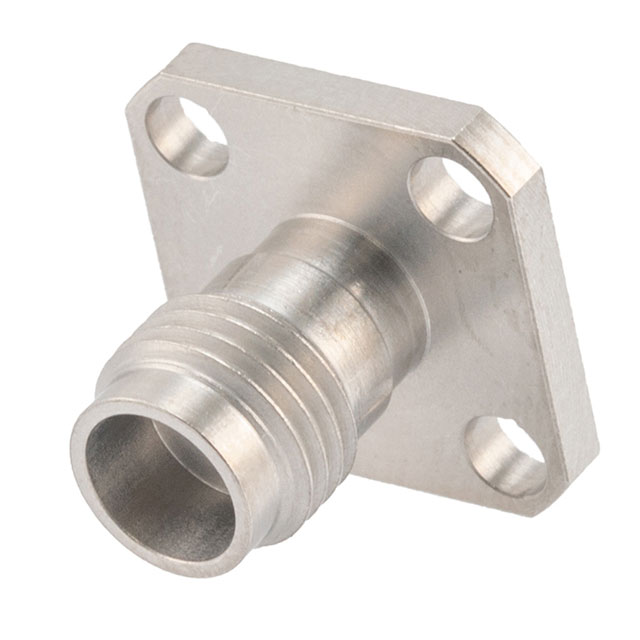

PE45610

Active

Pasternack

2.4(F) FLD RPL 4HOLE 0.009" PIN

Search across all available documentation for this part.

Active

Pasternack

2.4(F) FLD RPL 4HOLE 0.009" PIN

Technical Specifications

Parameters and characteristics for this part

Specification	PE45610

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	50 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Screw

Part	Mating Cycles	Contact Termination	Frequency - Max [Max]	Dielectric Material	Number of Ports	Mounting Feature	Body Material	Housing Color	Impedance	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Connector Style	Connector Style	Connector Style	Features	Center Contact Material	Center Contact Plating
Pasternack PE45616	500	Compression	50 GHz	Polyetherimide (PEI)	1	Flange	Stainless Steel	Silver	50 Ohms	Screw	165 °C	-40 °C	Female Socket Receptacle	OS-50	2.4 mm	APC-2.4	Field Replaceable For Hermetically Sealed Pin	Beryllium Copper	Gold
Pasternack PE45610	500	Compression	50 GHz	Polyetherimide (PEI)	1	Flange	Stainless Steel	Silver	50 Ohms	Screw	165 °C	-40 °C	Female Socket Receptacle	OS-50	2.4 mm	APC-2.4	Field Replaceable For Hermetically Sealed Pin	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
