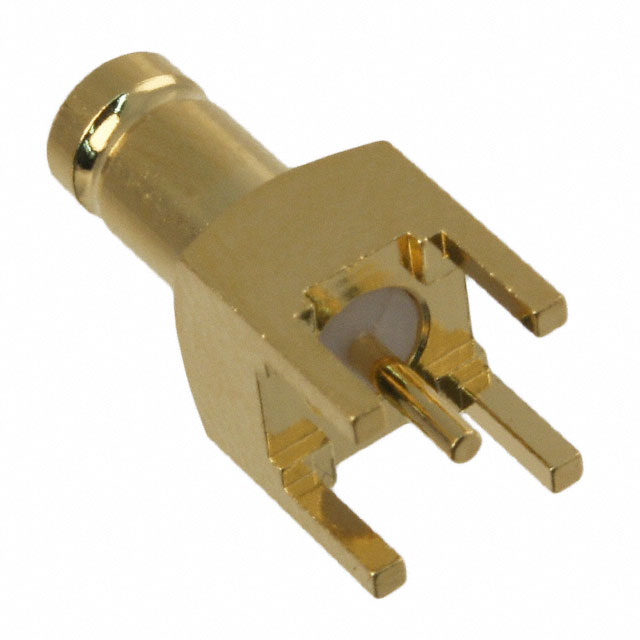

282127-75

Active

Amphenol RF

CONN 1.0/2.3 JACK STR 75 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 JACK STR 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	282127-75

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Connector Style	Voltage Rating	Mating Cycles	Impedance	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Mounting Type	Body Material	Shield Termination	Number of Ports	Body Finish	Fastening Type	Dielectric Material	Frequency - Max [Max]	Center Contact Plating	Connector Type	Contact Termination
Amphenol RF 282127-75	1.0/2.3	250 VDC	500	75 Ohms	Gold	-65 ░C	165 °C	Beryllium Copper	Through Hole	Brass	Solder	1	Gold	Push-Pull	Polytetrafluoroethylene (PTFE)	3 GHz	Gold	Female Socket Jack	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.28

General part information

1.0/2.3 Connector Jack, Female Socket 75 Ohms Through Hole Solder
