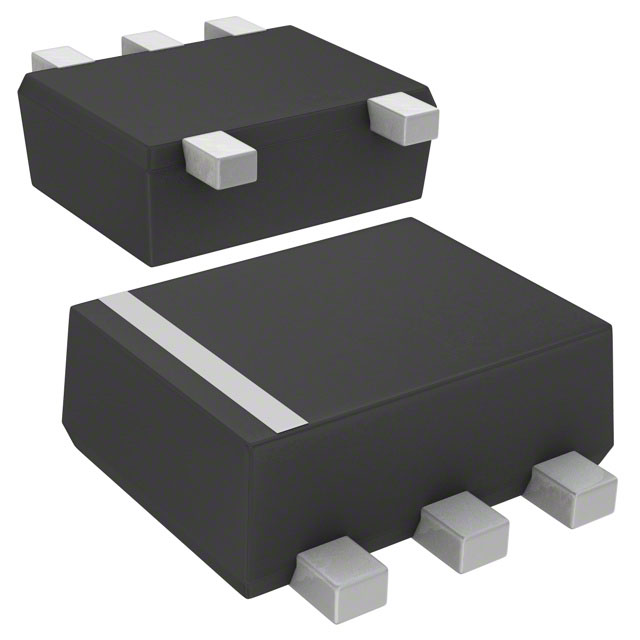

DZ5S100D0R
UnknownPanasonic Industrial Automation Sales
DIODE ZENER ARRAY 10V SSMINI5
Deep-Dive with AI
Search across all available documentation for this part.
DZ5S100D0R
UnknownPanasonic Industrial Automation Sales
DIODE ZENER ARRAY 10V SSMINI5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ5S100D0R |
|---|---|
| Configuration | 2 Pair Common Anode |
| Current - Reverse Leakage @ Vr | 50 nA |
| Impedance (Max) (Zzt) [Max] | 30 Ohms |
| Mounting Type | Surface Mount |
| Package / Case | SOT-665 |
| Power - Max [Max] | 150 mW |
| Supplier Device Package | SSMini5-F4-B |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Zener (Nom) (Vz) | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 8000 | $ 0.24 | |
| 16000 | $ 0.22 | |||
| 24000 | $ 0.22 | |||
Description
General part information
DZ5S10 Series
Zener Diode Array 2 Pair Common Anode 10 V 150 mW SSMini5-F4-B
Documents
Technical documentation and resources
No documents available
