1318699-3

Active

TE CONNECTIVITY

MR HDR ASSY 12P COATING

Search across all available documentation for this part.

Active

TE CONNECTIVITY

MR HDR ASSY 12P COATING

Technical Specifications

Parameters and characteristics for this part

Specification	1318699-3

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post [x]	0.149 in
Contact Length - Post [x]	3.78 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

MR HDR ASSY 12P COATING

Part	Style	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Insulation Material	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Connector Type	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Shrouding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Mating
TE CONNECTIVITY 1318699-3	Board to Cable/Wire	Solder	4.2 mm	0.165 in	12	UL94 V-0	4.2 mm	0.165 in	Phosphor Bronze	Tin-Lead	Polyamide (PA66), Nylon 6/6	Circular	All	5 A	Header	Black	0.149 in	3.78 mm	Latch Lock	Shrouded - 4 Wall	Through Hole	85 °C	-55 °C	250 VAC	3 µin	0.076 µm	Male Pin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

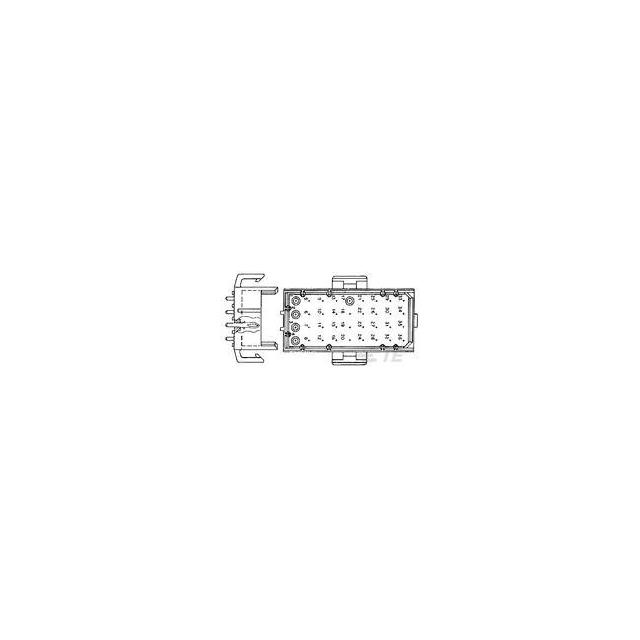

PCB Mount Header, Vertical, Wire-to-Board, 12 Position, 4.2 mm [.165 in] Centerline, Fully Shrouded, Gold (Au), AMP Miniature Rectangular MR
