R223703040
ActiveRadiall USA, Inc.

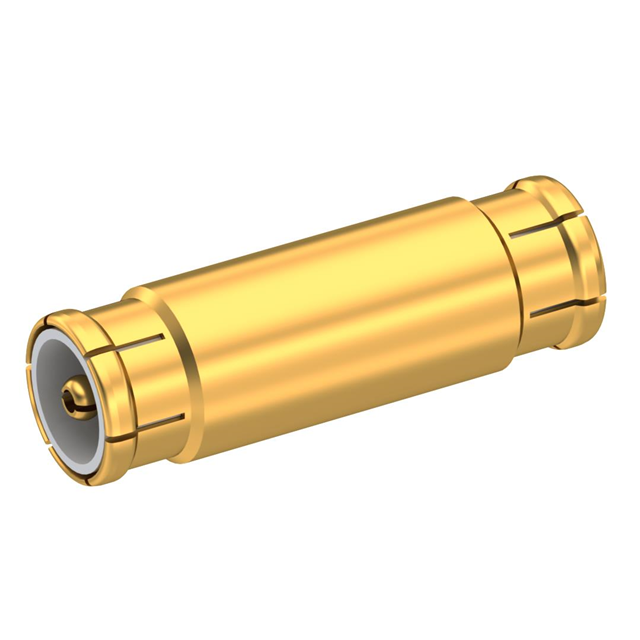

MMBX / MALE-MALE ADAPTER BOARD T
Deep-Dive with AI
Search across all available documentation for this part.
R223703040
ActiveRadiall USA, Inc.
MMBX / MALE-MALE ADAPTER BOARD T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R223703040 |
|---|---|
| Adapter Series | MMBX to MMBX |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Bronze |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | MMBX Plug, Male Pin |
| Convert To (Adapter End) | MMBX Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
R22370 Series
| Part | Center Contact Material | Body Material | Mounting Type | Center Contact Plating | Body Finish | Frequency - Max [Max] | Center Gender | Adapter Series | Dielectric Material | Conversion Type | Operating Temperature [Max] | Operating Temperature [Min] | Adapter Type | Impedance | Fastening Type | Convert From (Adapter End) | Convert To (Adapter End) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Beryllium Copper | Beryllium Copper | Free Hanging (In-Line) | Gold | Gold | 12.4 GHz | Male to Male | MMBX to MMBX | Polytetrafluoroethylene (PTFE) | Same Series | 155 °C | -55 °C | Plug to Plug | 50 Ohms | Snap-On | MMBX Plug Male Pin | Male Pin MMBX Plug | Straight |
Radiall USA, Inc. | Beryllium Copper | Beryllium Copper | Free Hanging (In-Line) | Gold | Gold | 12.4 GHz | Male to Male | MMBX to MMBX | Polytetrafluoroethylene (PTFE) | Same Series | 155 °C | -55 °C | Plug to Plug | 50 Ohms | Snap-On | MMBX Plug Male Pin | Male Pin MMBX Plug | Straight |
Radiall USA, Inc. | Beryllium Copper | Bronze | Free Hanging (In-Line) | Gold | Gold | 12.4 GHz | Male to Male | MMBX to MMBX | Polytetrafluoroethylene (PTFE) | Same Series | 155 °C | -55 °C | Plug to Plug | 50 Ohms | Snap-On | MMBX Plug Male Pin | Male Pin MMBX Plug | Straight |
Radiall USA, Inc. | Beryllium Copper | Bronze | Free Hanging (In-Line) | Gold | Gold | 12.4 GHz | Male to Male | MMBX to MMBX | Polytetrafluoroethylene (PTFE) | Same Series | 155 °C | -55 °C | Plug to Plug | 50 Ohms | Snap-On | MMBX Plug Male Pin | Male Pin MMBX Plug | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.42 | |
| 10 | $ 14.55 | |||
| 25 | $ 13.99 | |||
| 50 | $ 13.44 | |||
| 100 | $ 12.69 | |||
| 300 | $ 11.57 | |||
| 500 | $ 10.82 | |||
| 1000 | $ 9.93 | |||
Description
General part information
R22370 Series
Adapter Coaxial Connector MMBX Plug, Male Pin To MMBX Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
