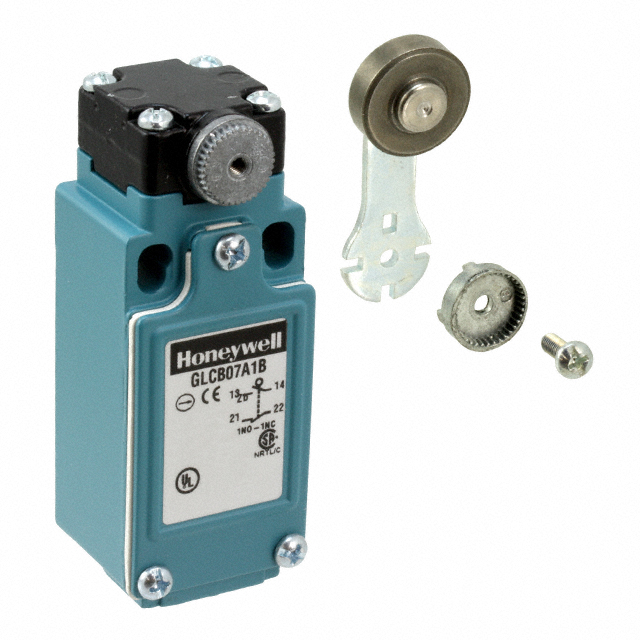

GLCB07A1B

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 0.1A 50V

Search across all available documentation for this part.

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 0.1A 50V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 0.1A 50V

Part	Mechanical Life	Operating Position	Pretravel	Voltage Rating - DC	Features	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Circuit	Current Rating (Amps)	Ingress Protection	Differential Travel	Overtravel	Switch Function	Actuator Type	Voltage Rating - AC
Honeywell Sensing and Control EMEA GLCB07A1B	10000000 Cycles	26 °	26 °	50 VDC	Steel Roller	Chassis Mount	Screw Terminal	85 °C	-40 °C	12 gfm	SPDT	100 mA	IP67 - Dust Tight, Waterproof	12 °	49 °	On-Mom	Roller, Side Rotary	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
