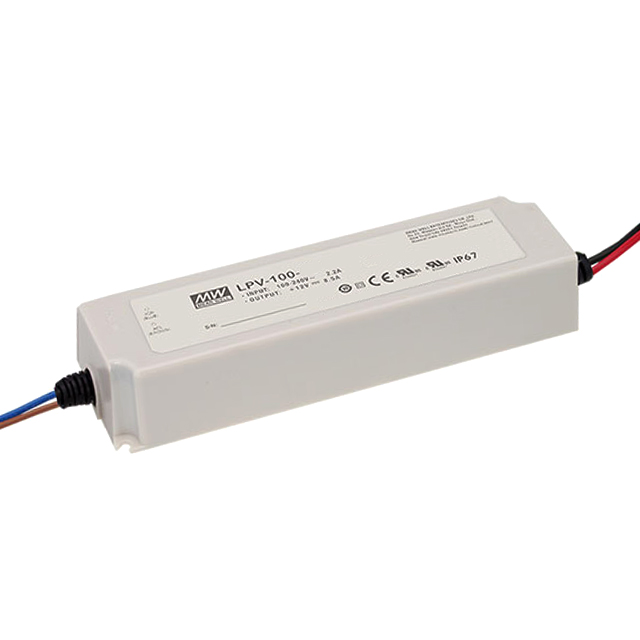

LPV-100-12

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 12V 8.5A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPV-100-12

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 12V 8.5A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPV-100-12

Approval Agency	CE, cURus
Current - Output (Max) [Max]	8.5 A
Efficiency	85 %
Features	OCP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	102 W
Ratings	IP67
Size / Dimension [x]	190 mm
Size / Dimension [x]	7.48 "
Size / Dimension [y]	2.05 in
Size / Dimension [y]	52 mm
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Voltage
Voltage - Input (Max) [Max]	264 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output	12 V

LPV-100 Series

Part	Number of Outputs	Mounting Type	Approval Agency	Features	Ratings	Topology	Voltage - Input (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Current - Output (Max) [Max]	Voltage - Output	Power (Watts)	Voltage - Isolation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
MEAN WELL USA Inc. LPV-100-12	1	Chassis Mount	CE cURus	OCP OVP	IP67	AC DC Converter	264 VAC	85 %	90 VAC	37 mm	1.46 "	2.05 in	190 mm	52 mm	7.48 "	Wire Leads	8.5 A	12 V	102 W	3000 V	Constant Voltage	70 °C	-25 °C
MEAN WELL USA Inc. LPV-100-48	1	Chassis Mount	CE cURus	OCP OVP	IP67	AC DC Converter	264 VAC	89 %	90 VAC	37 mm	1.46 "	2.05 in	190 mm	52 mm	7.48 "	Wire Leads	2.1 A	48 V	101 W	3000 V	Constant Voltage	70 °C	-25 °C
MEAN WELL USA Inc. LPV-100-24	1	Chassis Mount	CE cURus	OCP OVP	IP67	AC DC Converter	264 VAC	88 %	90 VAC	37 mm	1.46 "	2.05 in	190 mm	52 mm	7.48 "	Wire Leads	4.2 A	24 V	101 W	3000 V	Constant Voltage	70 °C	-25 °C
MEAN WELL USA Inc. LPV-100-5	1	Chassis Mount	CE cURus	OCP OVP	IP67	AC DC Converter	264 VAC	80 %	90 VAC	37 mm	1.46 "	2.05 in	190 mm	52 mm	7.48 "	Wire Leads	12 A	5 V	60 W	3000 V	Constant Voltage	70 °C	-25 °C
MEAN WELL USA Inc. LPV-100-15	1	Chassis Mount	CE cURus	OCP OVP	IP67	AC DC Converter	264 VAC	87 %	90 VAC	37 mm	1.46 "	2.05 in	190 mm	52 mm	7.48 "	Wire Leads	6.7 A	15 VDC	101 W	3000 V	Constant Voltage	70 °C	-25 °C
MEAN WELL USA Inc. LPV-100-36	1	Chassis Mount	CE cURus	OCP OVP	IP67	AC DC Converter	264 VAC	88 %	90 VAC	37 mm	1.46 "	2.05 in	190 mm	52 mm	7.48 "	Wire Leads		36 V	101 W	3000 V	Constant Voltage	70 °C	-25 °C	2.8 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.47
		5	$ 25.46
		10	$ 24.65
		25	$ 23.61

Description

General part information

LPV-100 Series

8.5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
