MS3120F12-10P
ActiveAmphenol Industrial Operations

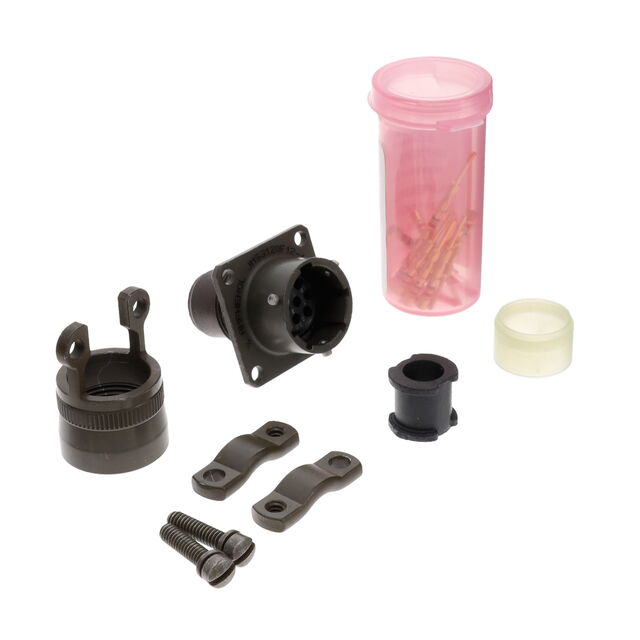

CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3120F12-10P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3120F12-10P | MS3120F12 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 10 | 8 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 12-3, 12-8 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 128.48 | |
| 10 | $ 117.90 | |||
| 25 | $ 113.37 | |||
| 50 | $ 109.59 | |||
MS3120F12 Series
CONN RCPT MALE 3POS GOLD CRIMP
| Part | Shielding | Contact Material | Applications | Shell Material | Connector Type | Qualification | Primary Material | Shell Size - Insert | Backshell Material, Plating | Color | Ingress Protection | Grade | Orientation | Shell Finish | Features | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Insert Material | Mounting Feature | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3120F-12-3P | Unshielded | Copper Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Male Pins, Receptacle | MIL-DTL-26482 Series I | Metal | 12-3 | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Military | N | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Bayonet Lock | -55 °C | 125 °C | Gold | Neoprene | Flange | Crimp | |
Amphenol Industrial Operations MS3120F12-3S(LC) | |||||||||||||||||||||||
Amphenol Industrial Operations MS3120F12-10P(LC) | |||||||||||||||||||||||
Amphenol Industrial Operations MS3120F12-3P(LC) | |||||||||||||||||||||||
Amphenol Industrial Operations MS3120F12-8SW | Unshielded | Copper Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Receptacle, Female Sockets | MIL-DTL-26482 Series I | Metal | 12-8 | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Military | W | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Bayonet Lock | -55 °C | 125 °C | Gold | Neoprene | Flange | Crimp | 8 |
Amphenol Industrial Operations MS3120F12-10S(LC) | |||||||||||||||||||||||
Amphenol Industrial Operations MS3120F12-8S | Unshielded | Copper Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Receptacle, Female Sockets | MIL-DTL-26482 Series I | Metal | 12-8 | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Military | N | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Bayonet Lock | -55 °C | 125 °C | Gold | Neoprene | Flange | Crimp | 8 |
Amphenol Industrial Operations MS3120F12-10P | Unshielded | Copper Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Male Pins, Receptacle | MIL-DTL-26482 Series I | Metal | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Military | N | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Bayonet Lock | -55 °C | 125 °C | Gold | Neoprene | Flange | Crimp | 10 | |
Amphenol Industrial Operations MS3120F12-8P(LC) | |||||||||||||||||||||||
Amphenol Industrial Operations MS3120F12-3S | Unshielded | Copper Alloy | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | Receptacle, Female Sockets | MIL-DTL-26482 Series I | Metal | 12-3 | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Environment Resistant | Military | N | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Bayonet Lock | -55 °C | 125 °C | Gold | Neoprene | Flange | Crimp |
Description
General part information
MS3120F12 Series
10 Position Circular Connector Receptacle, Male Pins Crimp
