091I,AL

Active

Serpac

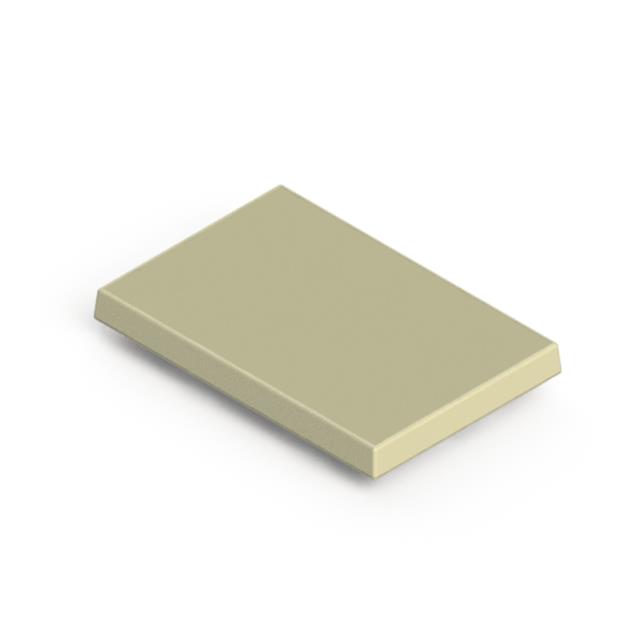

BOX ABS ALMOND 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	091I,AL

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Almond
Container Type	Box
Features	PCB Supports
Height [z]	22.86 mm
Height [z]	0.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.522 lb
Weight	236.78 g

Part	Area (L x W)	Area (L x W)	Material	Thickness	Thickness	Features	Ratings	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Container Type	Color	Height [z]	Height [z]	Material Flammability Rating
Serpac 091I,GY	60.2 in²	388 cm²	Plastic ABS	2.54 mm	0.1 in	PCB Supports	IP40 NEMA 1	0.522 lb	236.78 g	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Gray	22.86 mm	0.9 in	UL94 HB
Serpac 091I,AL	60.2 in²	388 cm²	Plastic ABS	2.54 mm	0.1 in	PCB Supports	IP40 NEMA 1	0.522 lb	236.78 g	9.5 "	6.34 "	161.04 mm 241.3 mm	Box	Almond	22.86 mm	0.9 in	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.08

General part information

Box Plastic, ABS Almond 9.500" L x 6.340" W (241.30mm x 161.04mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available
