8280-2PG-321

Active

Conxall/Switchcraft

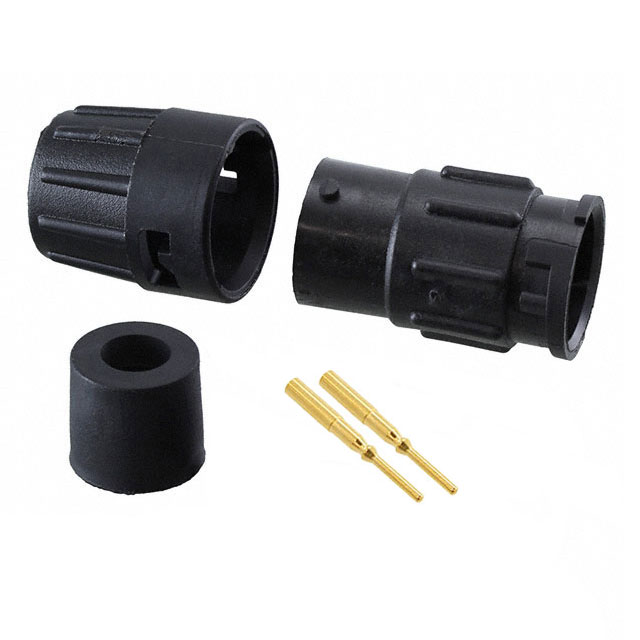

CONN RCPT MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	8280-2PG-321	8280-2PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	6.35 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 - 0.25 in
Cable Opening [Min] [diameter]	5.33 mm	5.33 - 5.59 mm
Cable Opening [Min] [diameter]	0.21 in	0.21 - 0.22 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

CONN RCPT MALE 2POS GOLD CRIMP

Part	Contact Finish - Mating	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Primary Material	Fastening Type	Current Rating (Amps)	Mounting Type	Voltage Rating	Backshell Material, Plating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Shielding	Features	Ingress Protection	Applications	Color	Orientation	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-2PG-522	Gold	Brass	6.35 mm	0.25 in	0.22 in	5.59 mm	Plastic	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	600 V	Nylon, Polyamide (PA)	Male Pins, Receptacle	-40 °C	115 °C	2	Crimp	Unshielded	Backshell	Weathertight	Automotive, Communication Systems, Instrumentation	Black	Keyed
Conxall/Switchcraft 8280-2PG-3DC	Gold	Brass					Plastic	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	600 V	Nylon, Polyamide (PA)	Male Pins, Receptacle	-40 °C	115 °C	2	Crimp	Unshielded	Backshell	Weathertight	Automotive, Communication Systems, Instrumentation	Black	Keyed
Conxall/Switchcraft 8280-2PG-321	Gold	Brass		0.23 in	0.21 in	5.33 mm	Plastic	Bayonet Lock	Varies by Wire Gauge	Free Hanging (In-Line)	600 V	Nylon, Polyamide (PA)	Male Pins, Receptacle	-40 °C	115 °C	2	Crimp	Unshielded	Backshell	Weathertight	Automotive, Communication Systems, Instrumentation	Black	Keyed	5.84 mm
