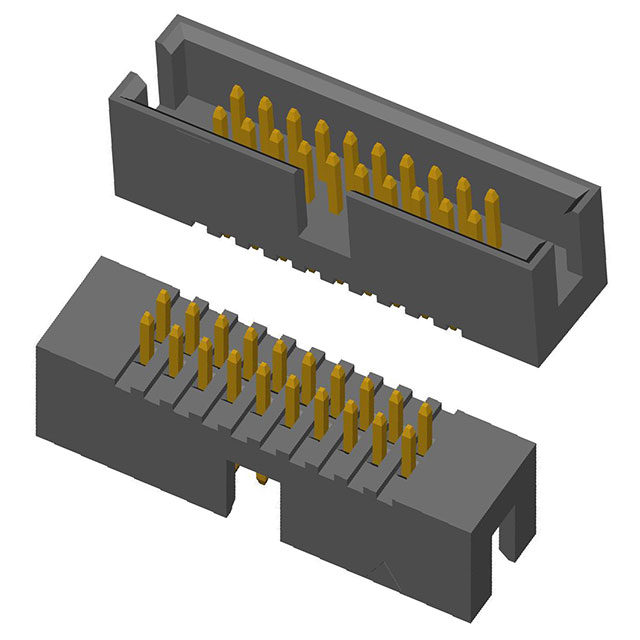

3221-24-0100-00

Obsolete

CnC Tech, LLC

CONN HEADER VERT 24POS 1.27MM

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN HEADER VERT 24POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	3221-24-0100-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.083 in
Contact Length - Post	2.11 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Insulation Color	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Fastening Type	Material Flammability Rating	Contact Type	Number of Rows	Shrouding	Contact Shape	Features	Voltage Rating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Style	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Connector Type	Termination	Insulation Height	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Contact Length - Post	Contact Length - Post
CnC Tech, LLC 3221-24-0300-00	Black	24	All	Gold	Push-Pull	UL94 V-0	Male Pin	2	Shrouded - 4 Wall	Square	Keying Slot	50 VAC	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	Brass	Gold	Nylon 9T Polyamide (PA9T)	Flash	Flash	Header	Solder	5.4 mm	0.213 in	-40 °C	105 ░C
CnC Tech, LLC 3221-24-0200-00	Black	24	All	Gold	Push-Pull	UL94 V-0	Male Pin	2	Shrouded - 4 Wall	Square	Keying Slot	50 VAC	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	Brass	Gold	Nylon 9T Polyamide (PA9T)	Flash	Flash	Header	Solder		0.201 "	-40 °C	105 ░C	5.1 mm	0.083 in	2.11 mm
CnC Tech, LLC 3221-24-0100-00	Black	24	All	Gold	Push-Pull	UL94 V-0	Male Pin	2	Shrouded - 4 Wall	Square	Keying Slot	50 VAC	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	Brass	Gold	Nylon 9T Polyamide (PA9T)	Flash	Flash	Header	Solder	5.4 mm	0.213 in	-40 °C	105 ░C		0.083 in	2.11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 24 position 0.050" (1.27mm)
