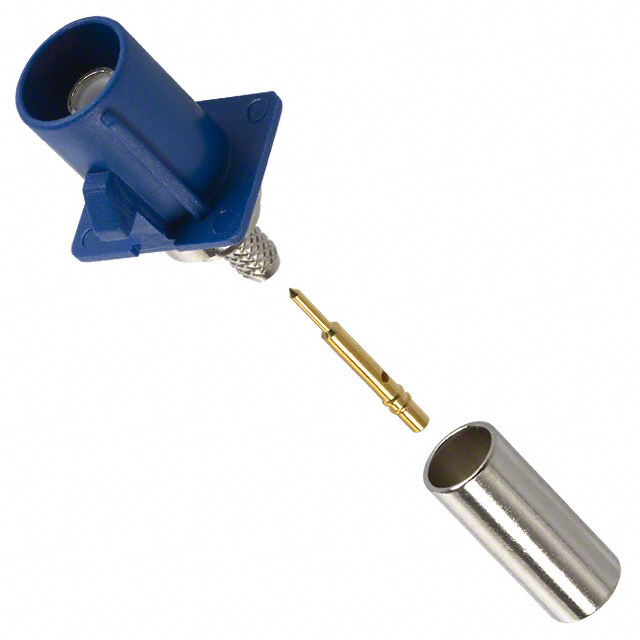

FA1-NCSP-C01-1

Active

Amphenol RF

CONN FAKRA PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NCSP-C01-1

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code C
Frequency - Max [Max]	4 GHz
Housing Color	Blue, Signal
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.3 dB
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Number of Ports	Housing Color	Fastening Type	Shield Termination	Cable Group	Insertion Loss	Connector Style	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Impedance	Mounting Feature	Center Contact Plating	Features	Frequency - Max [Max]	Connector Type	Body Finish	Center Contact Material	Body Material	Includes	Mounting Type
Amphenol RF FA1-NCSP-C01-0	1	Blue Signal	Locking Ramp	Crimp	188 188A 316 LMR-100 M17/119-RG174 RG-174	0.3 dB	Fakra SMB	Crimp	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Flange	Gold	Code C	4 GHz	Male Pin Plug	Nickel	Brass	Brass	1 Connector 1 Contact 1 Ferrule
Amphenol RF FA1-NCSP-C04-1	1	Blue Signal	Locking Ramp	Crimp	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	0.3 dB	Fakra SMB	Crimp	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Flange	Gold	Code C	4 GHz	Male Pin Plug	Nickel	Brass	Brass	1 Connector 1 Contact 1 Ferrule
Amphenol RF FA1-NCSP-PCB-1	1	Blue Signal	Locking Ramp	Solder		0.3 dB	Fakra SMB	Solder	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)	50 Ohms		Gold	Code C	4 GHz	Male Pin Plug	Gold	Brass	Brass		Board Edge Cutout Surface Mount
Amphenol RF FA1-NCSP-C01-1	1	Blue Signal	Locking Ramp	Crimp	188 188A 316 LMR-100 M17/119-RG174 RG-174	0.3 dB	Fakra SMB	Crimp	100 °C	-40 °C	Polytetrafluoroethylene (PTFE)	50 Ohms	Flange	Gold	Code C	4 GHz	Male Pin Plug	Nickel	Brass	Brass	1 Connector 1 Contact 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Panel Mount Crimp
