TE Connectivity Potter & Brumfield Relays

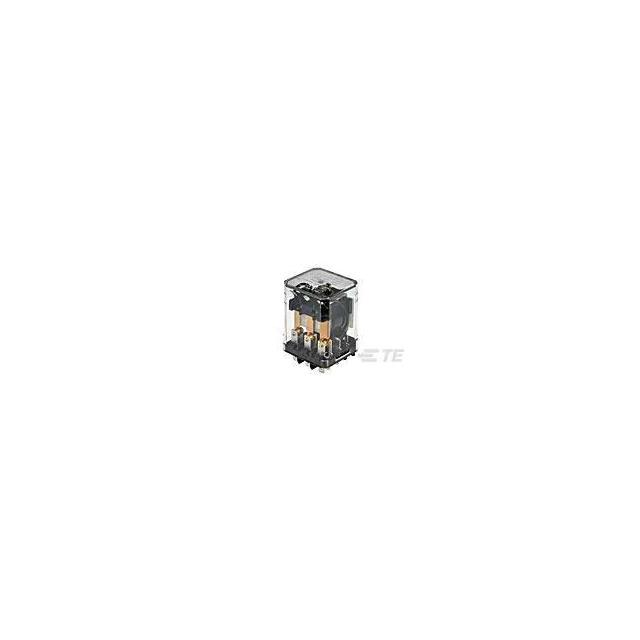

RELAY GEN PURPOSE 3PDT 15A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9-1393116-2

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 3PDT 15A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9-1393116-2

Coil Current	100 mA
Coil Insulation	Class B
Coil Resistance	120 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	15 A
Mounting Type	Chassis Mount
Must Operate Voltage	9 VDC
Operate Time	15 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage [Max]	277 VAC
Termination Style	Quick Connect - 0.187" (4.7mm)

KUMP-14 Series

Part	Contact Rating (Current)	Mounting Type	Contact Material	Release Time	Contact Form	Coil Insulation	Must Operate Voltage	Coil Current	Relay Type	Coil Type	Coil Resistance	Termination Style	Approval Agency	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]	Operate Time	Load - Max Switching	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Features
TE Connectivity Potter & Brumfield Relays KUMP-14D18-12	15 A	Socketable	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	9 VDC	100 mA	General Purpose	Non Latching	120 Ohms	Plug In Quick Connect - 0.187" (4.7mm)	CSA UR	12 VDC	-45 °C	70 °C	277 VAC	15 ms	4155 VA
TE Connectivity Potter & Brumfield Relays KUMP-14A18-12	15 A	Socketable	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	10.2 VAC	230 mA	General Purpose	Non Latching	18 Ohms	Plug In Quick Connect - 0.187" (4.7mm)	CSA UR	12 VAC/DC			277 VAC	15 ms	4155 VA	45 °C	-45 °C
TE Connectivity Potter & Brumfield Relays KUMP-14A18-240	15 A	Socketable	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	204 VAC	12 mA	General Purpose	Non Latching	7.2 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	CSA UR	240 VAC			277 VAC	15 ms	4155 VA	45 °C	-45 °C
TE Connectivity Potter & Brumfield Relays KUMP-14D58-24	15 A	Chassis Mount	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	18 VDC	51 mA	General Purpose	Non Latching	472 Ohms	Quick Connect - 0.187" (4.7mm)	CSA UR	24 VDC	-45 °C	70 °C	277 VAC	15 ms	4155 VA
TE Connectivity Potter & Brumfield Relays KUMP-14A18-120	15 A	Socketable	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	102 VAC	24 mA	General Purpose	Non Latching	1.7 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	CSA UR	120 VAC			277 VAC	15 ms	4155 VA	45 °C	-45 °C
TE Connectivity Potter & Brumfield Relays KUMP-14A38-120	15 A	Socketable	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	102 VAC	24 mA	General Purpose	Non Latching	1.7 kOhms	Plug In Quick Connect - 0.187" (4.7mm)	CSA UR	120 VAC			277 VAC	15 ms	4155 VA	45 °C	-45 °C	Lighted Indicator
TE Connectivity Potter & Brumfield Relays 9-1393116-2	15 A	Chassis Mount	Silver Cadmium Oxide (AgCdO)	10 ms	3PDT (3 Form C)	Class B	9 VDC	100 mA	General Purpose	Non Latching	120 Ohms	Quick Connect - 0.187" (4.7mm)		12 VDC	-45 °C	70 °C	277 VAC	15 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 43.94
		10	$ 42.32

Description

General part information

KUMP-14 Series

General Purpose Relay 3PDT (3 Form C) 12VDC Coil Chassis Mount
