AP72200WLCSP-20-EVM

Active

Diodes Inc

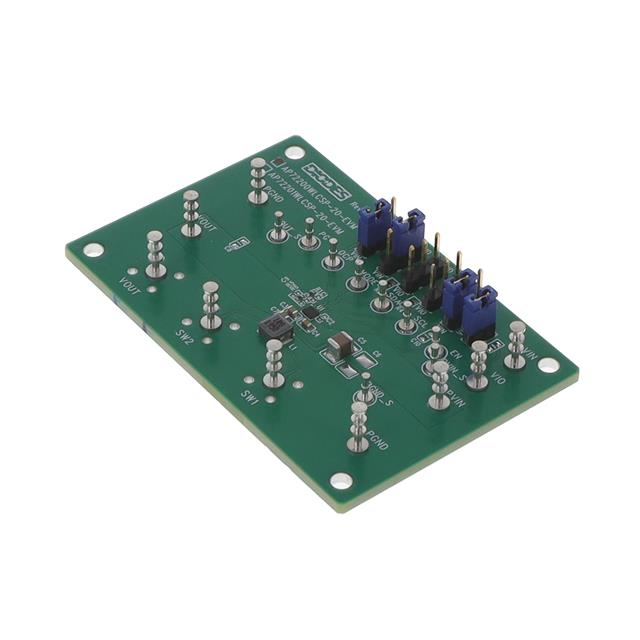

EVAL BOARD FOR AP72200

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP72200WLCSP-20-EVM

Board Type	Fully Populated
Current - Output	2 A
Frequency - Switching	2.5 MHz
Main Purpose	DC/DC, Step Up or Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck-Boost
Supplied Contents	Board(s)
Utilized IC / Part	AP72200
Voltage - Input [Max]	5.5 V
Voltage - Input [Min]	2.3 V
Voltage - Output [Max]	5.14 V
Voltage - Output [Min]	2.6 V

AP72200 Series

Part	Current - Output	Voltage - Output [Max]	Voltage - Output [Min]	Outputs and Type	Outputs and Type	Main Purpose	Utilized IC / Part	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Frequency - Switching	Supplied Contents	Regulator Topology
Diodes Inc AP72200WLCSP-20-EVM	2 A	5.14 V	2.6 V	Non-Isolated	1	DC/DC Step Up or Down	AP72200	Fully Populated	2.3 V	5.5 V	2.5 MHz	Board(s)	Buck-Boost

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.53

Description

General part information

AP72200 Series

The AP72200 is a high current synchronous buck-boost converter providing high efficiency, excellent transient response and high DC output accuracy. The targeted applications are smartphones, tablets, and other handheld devices. The AP72200 utilizes a four switches H-bridge configuration to support buck and boost operation. The buck-boost provides at least 2A output current.
