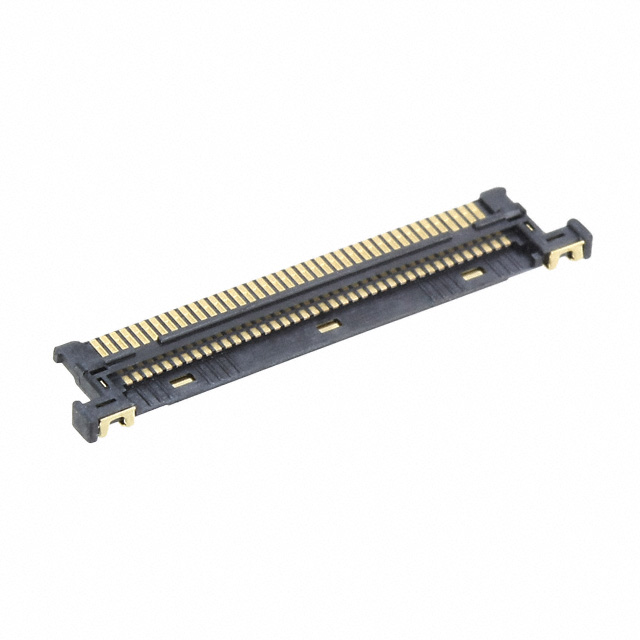

FI-JH40C-B

Obsolete

JAE Electronics

CONN PLUG 40POS 42-46AWG GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG 40POS 42-46AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Accessory Type	Number of Positions	For Use With/Related Products	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Number of Rows	Number of Positions Loaded	Fastening Type	Connector Type	Termination	Insulation Material	Contact Material	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish - Mating	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Wire Type	Pitch [x]	Pitch [x]
JAE Electronics FI-JH40C-CSH1-10000	Shell	40	FI-JH Series
JAE Electronics FI-JH40S-HF10		40		0.099 µm	3.9 µin	Surface Mount Right Angle	0.039 "	1 mm	0.016 in	0.4 mm	Non-Gendered	Gold	1	All	Friction Lock	Receptacle	Solder	Plastic	Copper Alloy	Board to Cable/Wire	1.25 µin	0.032 µm	Solder Retention	Gold
JAE Electronics FI-JH40C-B		40				Free Hanging (In-Line)					Male Pin		1		Friction Lock	Plug									1.18 Áin	0.03 Ám	46 AWG	42 AWG	Gold	Discrete or Ribbon Cable	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Rectangular Plug Connector Gold 42-46 AWG
