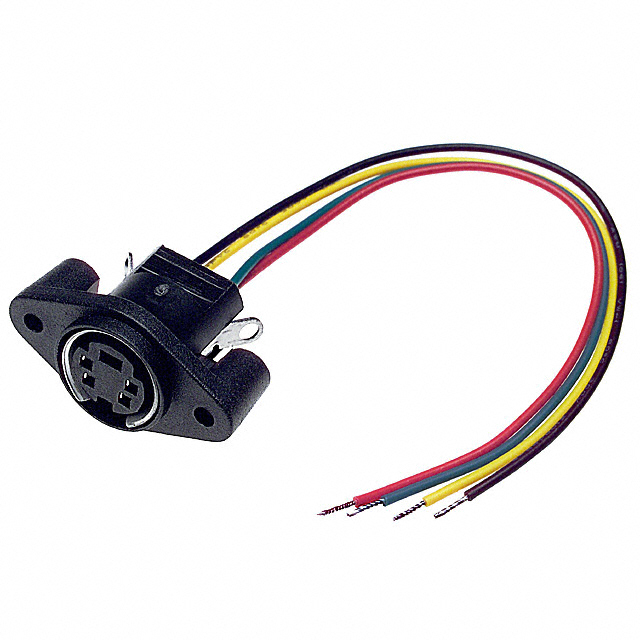

MD-40PL100

Active

CUI Devices

CONN RCPT FMALE MINI DIN 4P WIRE

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE MINI DIN 4P WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MD-40PL100

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Unshielded
Termination	Wire Leads
Voltage Rating	100 VAC, 12 V

Part	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Connector Type	Fastening Type	Orientation	Shell Material	Features	Shell Size - Insert	Contact Material	Number of Positions	Mounting Feature	Primary Material	Voltage Rating	Termination
CUI Devices MD-40PL100	UL94 V-0	Black	85 °C	-40 °C	Unshielded	Receptacle Female Sockets	Push-Pull	Keyed	Polybutylene Terephthalate (PBT)	Ground	Mini DIN	Phosphor Bronze	4	Flange	Plastic	12 V 100 VAC	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Wire Leads
