N-10B-19
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE NAT FASTENER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N-10B-19
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE NAT FASTENER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-10B-19 |
|---|---|
| Bundle Center to Mounting Center | 0.625 in |
| Bundle Center to Mounting Center | 15.88 mm |
| Color | Natural |
| Features | Flame Retardant |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Material Thickness | 0.063 in |
| Material Thickness | 1.6 mm |
| Mounting Type | Fastener |
| Opening Size [x] | 0.625 in |
| Opening Size [x] | 15.88 mm |
| Panel Hole Size | 5.18 mm |
| Panel Hole Size [diameter] | 0.204 in |
| Screw Size | M5 |
| Screw Size | #10 |
| Type | Clamp, P-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.38 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| 3000 | $ 0.17 | |||
Description
General part information
N-10 Series

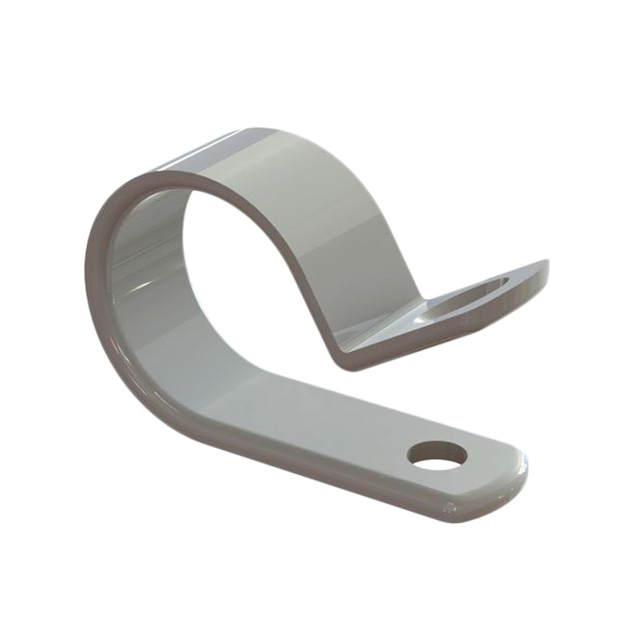

Cable Clamp, P-Type Natural Fastener 0.625" (15.88mm)
Documents
Technical documentation and resources
