SSI-LXR3816USBD150

Active

Lumex Opto/Components Inc.

LED PANEL INDICATOR BLUE 3.5V

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED PANEL INDICATOR BLUE 3.5V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

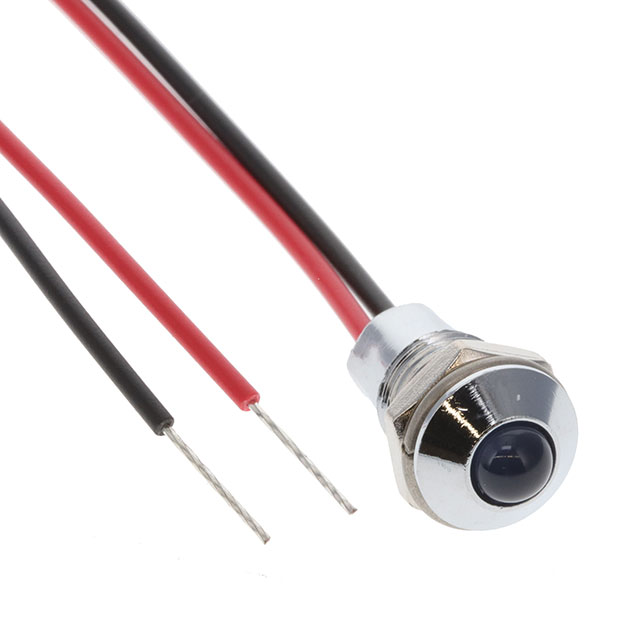

LED Panel Indicator Blue Diffused 60° 3.5V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED PANEL INDICATOR BLUE 3.5V

Part	Lamp Color	Lens Transparency	Lens Size	Lens Size	Panel Cutout Shape	Lens Color	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Millicandela Rating	Type	Voltage	Wavelength - Peak [custom]	Current	Voltage [custom]	Voltage [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Termination Style	Termination Style	Wavelength - Peak	Current [custom]	Current [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSI-LXR3816USBD150	Blue	Diffused	T-1 3/4	5 mm	Round	Blue	Round with Domed Top	8.13 mm	0.32 in	60 °	300 mcd	LED	3.5 V
Lumex Opto/Components Inc. SSI-LXR3816IY46835	Red, Yellow	Diffused	T-1 3/4	5 mm	Round	White	Round with Domed Top	8.13 mm	0.32 in	60 °		LED		585 nm, 635 nm	12 mA, 12 mA	5 V	5 V	20 mcd	15 mcd	914.4 mm	Wire Leads
Lumex Opto/Components Inc. SSI-LXR3816SYD-150	Yellow	Diffused	T-1 3/4	5 mm	Round	Yellow	Round with Domed Top	8.13 mm	0.32 in	60 °	100 mcd	LED	2.1 V									590 nm
Lumex Opto/Components Inc. SSI-LXR3816GD-150
Lumex Opto/Components Inc. SSI-LXR3816HGWB150	Green, Red	Diffused	T-1 3/4	5 mm	Round	White	Round with Domed Top	8.13 mm	0.32 in	60 °		LED	2 V, 2.2 V					6 mcd				565 nm, 700 nm	25 mA	25 mA	25 mcd
Lumex Opto/Components Inc. SSI-LXR3816SID-150	Red	Diffused	T-1 3/4	5 mm	Round	Red	Round with Domed Top	8.13 mm	0.32 in	60 °	700 mcd	LED	2 V									636 nm
Lumex Opto/Components Inc. SSI-LXR3816SGD-150	Green	Diffused	T-1 3/4	5 mm	Round	Green	Round with Domed Top	8.13 mm	0.32 in	60 °	40 mcd	LED	2.2 V									565 nm
