A10086CHFL

Active

Hoffman Enclosures, Inc.

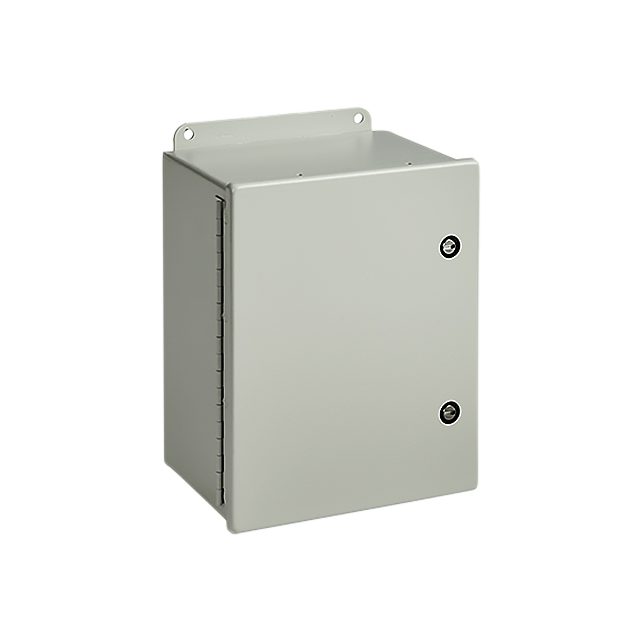

JUNCTION BOX STL 10"L X 7.99"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 10"L X 7.99"W

Technical Specifications

Parameters and characteristics for this part

Specification	A10086CHFL

Area (L x W)	80 in²
Area (L x W)	516 cm²
Color	Gray
Container Type	Junction Box
Design	Hinged Door, Lid
Features	Wall Mount, Sealing Gasket, Latches
Height [z]	5.984 in
Height [z]	152 mm
Material	Metal, Steel
Ratings	NEMA 4, IP66, UL-508A, 12
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 in
Size / Dimension [y]	7.992 in
Size / Dimension [y]	203 mm
Thickness	14 Gauge
Weight	9.6 lbs
Weight	4.4 kg

JUNCTION BOX STL 10"L X 7.99"W

Part	Thickness	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Design	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Color	Features	Weight	Weight	Ratings
Hoffman Enclosures, Inc. A10086CHFL	14 Gauge	Junction Box	7.992 in	254 mm	10 in	203 mm	Metal, Steel	Hinged Door, Lid	5.984 in	152 mm	80 in²	516 cm²	Gray	Latches, Sealing Gasket, Wall Mount	9.6 lbs	4.4 kg	12, IP66, NEMA 4, UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Hinged Door, Lid 10.000" L x 7.992" W (254.00mm x 203.00mm) X 5.984" (152.00mm)
