Q-2P00300052.5M

Active

Amphenol Custom Cable

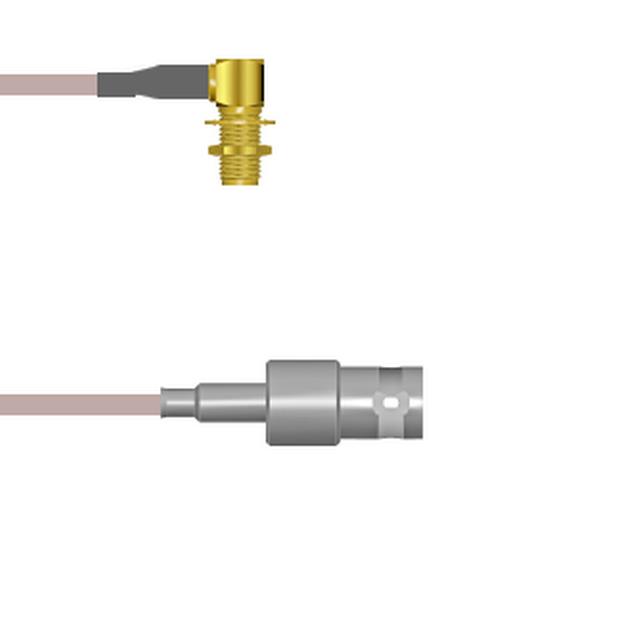

CBL ASSY BNC-SMA JACK-JACK 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P00300052.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Part	Features	2nd Connector Mounting Feature	2nd Contact Gender	Frequency - Max [Max]	Cable Type	Color	Connector Impedance	2nd Connector	Style	Cable Impedance	Length	Length	Length	1st Connector Mounting Type	Overall Impedance	1st Contact Gender	2nd Connector Mounting Type	1st Connector
Amphenol Custom Cable Q-2P0030005002M	Shielded	Bulkhead - Front Side Nut	Female	3 GHz	RG-316	Copper	50 Ohms	SMA Jack Right Angle	BNC to SMA	50 Ohms	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	BNC Jack
Amphenol Custom Cable Q-2P0030005003M	Shielded	Bulkhead - Front Side Nut	Female	3 GHz	RG-316	Copper	50 Ohms	SMA Jack Right Angle	BNC to SMA	50 Ohms	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	BNC Jack
Amphenol Custom Cable Q-2P00300031.5M	Shielded	Bulkhead - Front Side Nut	Female	1 GHz	RG-174	Black	50 Ohms	SMA Jack Right Angle	BNC to SMA	50 Ohms	4.9 ft	59.1 in	1.5 m	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	BNC Jack
Amphenol Custom Cable Q-2P00300051.5M	Shielded	Bulkhead - Front Side Nut	Female	3 GHz	RG-316	Copper	50 Ohms	SMA Jack Right Angle	BNC to SMA	50 Ohms	4.9 ft	59.1 in	1.5 m	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	BNC Jack
Amphenol Custom Cable Q-2P00300052.5M	Shielded	Bulkhead - Front Side Nut	Female	3 GHz	RG-316	Copper	50 Ohms	SMA Jack Right Angle	BNC to SMA	50 Ohms	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)	50 Ohms	Female	Panel Mount	BNC Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-316 98.4" (2.5m) 8.2'
