QMS-052-01-SL-D-RA-MG-TR

Active

Samtec Inc.

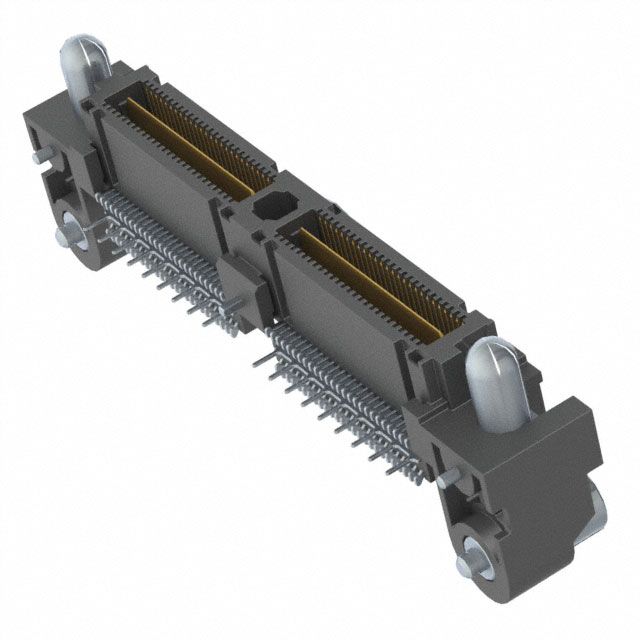

CONN HDR 104POS R/A GOLD

Deep-Dive with AI

Search across all available documentation for this part.

QMS-052-01-SL-D-RA-MG-TR

Active

Samtec Inc.

CONN HDR 104POS R/A GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QMS-052-01-SL-D-RA-MG-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Mating Guide, Ground Bus (Plane)
Height Above Board [z]	8.12 mm
Height Above Board [z]	0.32 in
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Positions	104
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QMS-052 Series

Part	Number of Positions	Mounting Type	Contact Finish	Features	Connector Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board	Height Above Board	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QMS-052-01-SL-D-RA-MG-TR	104	Surface Mount Right Angle Through Hole	Gold	Ground Bus (Plane) Mating Guide	Header Outer Shroud Contacts	0.64 mm	0.025 in	8.12 mm	0.32 in	2	10 Áin	0.25 Ám
Samtec Inc. QMS-052-06.75-L-D-A-K-TR	104	Surface Mount	Gold	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	10 Áin	0.25 Ám	11 mm 13 mm	0.25 in	6.35 mm
Samtec Inc. QMS-052-06.75-H-D-PC4	104	Surface Mount Through Hole	Gold	Board Guide Ground Bus (Plane) Power Pins (8)	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	30 Áin	0.76 Ám	11 mm 13 mm	0.265 in	6.73 mm
Samtec Inc. QMS-052-01-H-D-EM2-PC4		Board Edge Straddle Mount	Gold	Ground Bus (Plane) Power Pins (8)	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	30 Áin	0.76 Ám				104	8
Samtec Inc. QMS-052-09.75-SL-D-A-K	104	Surface Mount	Gold	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	10 Áin	0.25 Ám	14 mm 16 mm	0.368 in	9.35 mm
Samtec Inc. QMS-052-01-SL-D-RA-TR	104	Surface Mount Right Angle Through Hole	Gold	Ground Bus (Plane)	Header Outer Shroud Contacts	0.64 mm	0.025 in	8.12 mm	0.32 in	2	10 Áin	0.25 Ám
Samtec Inc. QMS-052-06.75-H-D-A	104	Surface Mount	Gold		Header Outer Shroud Contacts	0.64 mm	0.025 in			2	30 Áin	0.76 Ám	11 mm 13 mm	0.25 in	6.35 mm
Samtec Inc. QMS-052-09.75-S-D-A-K	104	Surface Mount	Gold	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	30 Áin	0.76 Ám	14 mm 16 mm	0.368 in	9.35 mm
Samtec Inc. QMS-052-05.75-L-D-A-GP-K	104	Surface Mount	Gold	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	10 Áin	0.25 Ám	10 mm 12 mm	0.212 in	5.38 mm
Samtec Inc. QMS-052-06.75-H-D-A-K-TR	104	Surface Mount	Gold	Board Guide Ground Bus (Plane) Pick and Place	Header Outer Shroud Contacts	0.64 mm	0.025 in			2	30 Áin	0.76 Ám	11 mm 13 mm	0.25 in	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	125	$ 18.05

Description

General part information

QMS-052 Series

104 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle; Through Hole Gold

Documents

Technical documentation and resources

No documents available
