PSHP-65-180-DIN

Obsolete

Tycon Systems Inc.

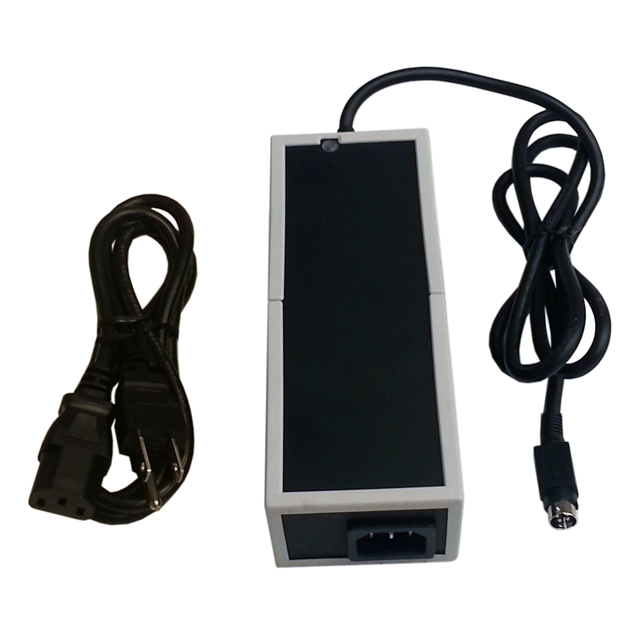

AC/DC DESKTOP ADAPTER 65V 182W

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

AC/DC DESKTOP ADAPTER 65V 182W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 65V 182W

Part	Form	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector	Current - Output (Max)	Input Connector	Voltage - Output	Efficiency	Applications	Approval Agency	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Input Type
Tycon Systems Inc. PSHP-65-180-DIN	Desktop (Class I)	182 W	50 °C	-20 C	1.2 m	47.2 in	90 VAC	264 VAC	4 Pin	Power DIN	2.8 A	IEC 320-C14	65 V	85 %	ITE (Commercial)	CE, cUL, FCC, TUV	International	43 mm	6.89 in	65 mm	1.69 in	175 mm	2.56 "	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

65V 182 W AC/DC External Desktop (Class I) Adapter Cord Input

Technical documentation and resources

No documents available
