3005W5PXX99A30X

Active

Amphenol CONEC

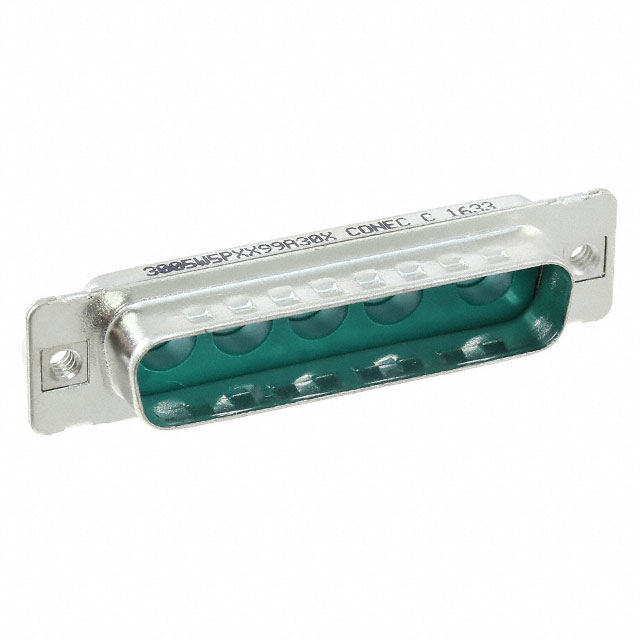

CONN D-SUB HOUSING PLUG 5POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3005W5PXX99A30X

Active

Amphenol CONEC

CONN D-SUB HOUSING PLUG 5POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3005W5PXX99A30X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug for Male Contacts
Contact Type	Coax, Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	320 µin
Shell Finish Thickness	8.13 µm
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3

3005W5P Series

Part	Connector Type	Flange Feature	Color	Connector Style	Number of Positions [custom]	Features	Contact Type	Number of Rows	Mounting Type	Shell Material, Finish	Mating Cycles	Dielectric Material	Shell Finish Thickness	Shell Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Current Rating (Amps)
Amphenol CONEC 3005W5PXX71AA0X	Male Pins Plug
Amphenol CONEC 3005W5PXX75N40X	Male Pins Plug
Amphenol CONEC 3005W5PXX62A10X	Male Pins Plug
Amphenol CONEC 3005W5PXX99E40X	Plug for Male Contacts	4-40 Board Side	Green	Combo D-Sub	5	Grounding Indents	Power	1	Through Hole	Steel Tin-Nickel Plated	500	Polybutylene Terephthalate (PBT) Glass Filled	8 µm	315 µin	5W5	3
Amphenol CONEC 3005W5PXX99G20X	Plug for Male Contacts	Housing/Shell (4-40)		Combo D-Sub		Grounding Indents	Coax Power	1	Through Hole Right Angle			Polybutylene Terephthalate (PBT) Glass Filled			5W5	3	-55 °C	125 °C	Contacts Not Included
Amphenol CONEC 3005W5PXX88N40X	Male Pins Plug	Housing/Shell (4-40)	Green	Combo D-Sub		Board Lock Grounding Indents Mounting Brackets	Coax	1	Through Hole Right Angle						5W5	3				Gold	50 µin	1.27 µm	Solder	5
Amphenol CONEC 3005W5PXX99A10X	Plug for Male Contacts	Housing/Shell (Unthreaded)	Green	Combo D-Sub		Grounding Indents	Coax Power	1	Free Hanging (In-Line)			Polybutylene Terephthalate (PBT) Glass Filled			5W5	3	-55 °C	125 °C	Contacts Not Included
Amphenol CONEC 3005W5PXX99A30X	Plug for Male Contacts	Cable Side	Green	Combo D-Sub		Grounding Indents	Coax Power	1	Free Hanging (In-Line)			Polybutylene Terephthalate (PBT) Glass Filled	8.13 µm	320 µin	5W5	3	-55 °C	125 °C	Contacts Not Included
Amphenol CONEC 3005W5PXX57N40X	Male Pins Plug	Housing/Shell (4-40)	Green	Combo D-Sub	5	Board Lock Grounding Indents Mounting Brackets	Power	1	Through Hole Right Angle			Polybutylene Terephthalate (PBT) Glass Filled			5W5	3				Gold	30 Áin	0.76 Ám	Solder		30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.16
		10	$ 5.59
		25	$ 5.30
		50	$ 5.18
		100	$ 4.93
		250	$ 4.31
		500	$ 4.19
		1000	$ 3.57
		2500	$ 3.33

Description

General part information

3005W5P Series

Plug for Male Contacts Housing D-Sub, Combo Connector 5 (Coax or Power) Position
