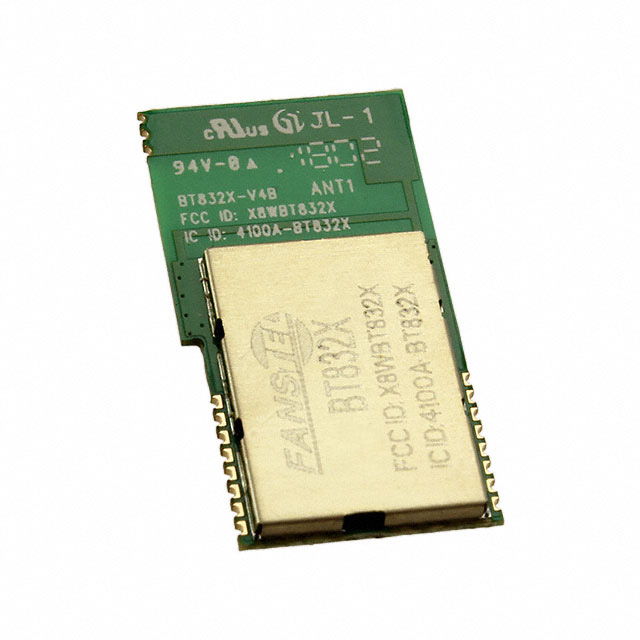

BT832X

Active

Fanstel Corp.

RF TXRX MOD BT TH SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD BT TH SMD

Technical Specifications

Parameters and characteristics for this part

Part	Type	Frequency	For Use With/Related Products	Supplied Contents	Mounting Type	Power - Output	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Package / Case	Protocol	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Serial Interfaces	Utilized IC / Part	Memory Size
Fanstel Corp. EV-BT832X	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz	BT832X	Board(s)
Fanstel Corp. EV-BT832AF	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz	BT832AF	Board(s)
Fanstel Corp. EV-BT832	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz	BT832	Board(s)
Fanstel Corp. EV-BT832F	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz	BT832F	Board(s)
Fanstel Corp. BT832XE		2.4 GHz			Surface Mount	20 dBm	Antenna Not Included U.FL	3.6 V	1.8 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C	-105 dBm	I2C SPI UART	nRF52832
Fanstel Corp. EV-BT832A	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz	BT832A	Board(s)
Fanstel Corp. BT832F		2.4 GHz			Surface Mount	4 dBm	Integrated Trace	3.6 V	1.7 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C		I2C I2S SPI UART	nRF52832
Fanstel Corp. BT832A		2.4 GHz			Surface Mount	4 dBm	Integrated Trace	3.6 V	1.7 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C		I2C I2S SPI UART	nRF52810	24 kB 192 kB
Fanstel Corp. EV-BT832XE	Bluetooth® 5.x (BLE) Transceiver	2.4 GHz	BT832XE	Board(s)
Fanstel Corp. BT832X		2.4 GHz			Surface Mount	20 dBm	Integrated Trace	3.6 V	1.8 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C	-105 dBm	I2C SPI UART	nRF52832

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Trace Surface Mount
