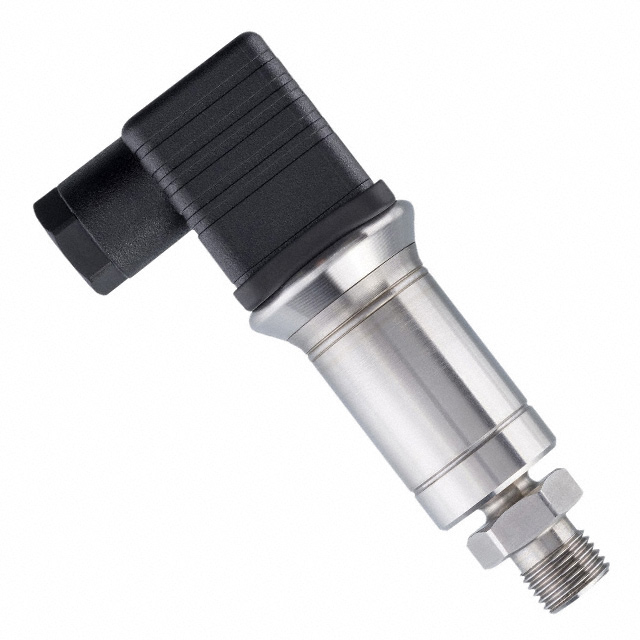

IPSLU-GP001-5M12

Obsolete

Sensata Technologies

PRESSURE TRANS. 0-1PSIG 1/4"NPT

Search across all available documentation for this part.

Obsolete

Sensata Technologies

PRESSURE TRANS. 0-1PSIG 1/4"NPT

Technical Specifications

Parameters and characteristics for this part

Specification	IPSLU-GP001-5M12

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder, Threaded - M12
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Connector
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	9 V

PRESSURE TRANS. 0-1PSIG 1/4"NPT

Part	Package / Case	Operating Pressure	Operating Pressure	Features	Operating Temperature [Min]	Operating Temperature [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Accuracy	Output Type	Termination Style	Applications	Pressure Type	Output [Max]	Output [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style
Sensata Technologies IPSLU-GP001-5M12	Cylinder, Threaded - M12	6.89 kPa	1 PSI	Amplified Output, Temperature Compensated	-20 C	80 C	NPT	0.25 "	6.35 mm	Male	0.25 %	Analog Current	Connector	Industrial Automation	Vented Gauge	20 mA	4 mA	9 V	32 VDC	Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PRESSURE TRANS. 0-1PSIG 1/4"NPT

Technical documentation and resources

No documents available
