10114826-00003LF

Active

Amphenol ICC (FCI)

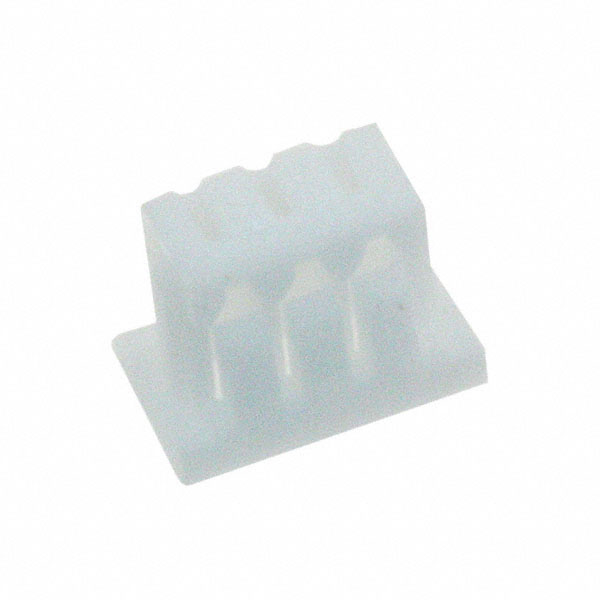

CONN RCPT HSG 3POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-675 Other Related Documents Datasheet +1

10114826-00003LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 3POS 1.25MM

Deep-Dive with AI

Documentsgs-12-675 Other Related Documents Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10114826-00003LF

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm

10114826 Series

Part	Note	Color	Mounting Type	Number of Rows	Connector Type	Contact Termination	Insulation Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 10114826-00010LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	10	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00006LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	6	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00013LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	13	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00009LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	9	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00004LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	4	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00008LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	8	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-10008LF		Black	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	8	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00012LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	12	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00002LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6	2	-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm
Amphenol ICC (FCI) 10114826-00003LF	Contacts Not Included	Natural	Free Hanging (In-Line)	1	Receptacle	Crimp	Polyamide (PA66) Nylon 6/6		-40 °C	105 ░C	Female Socket	0.049 in	1.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.10
		10	$ 0.06
		100	$ 0.04
		500	$ 0.04
		1000	$ 0.03
		5000	$ 0.03
		10000	$ 0.03
