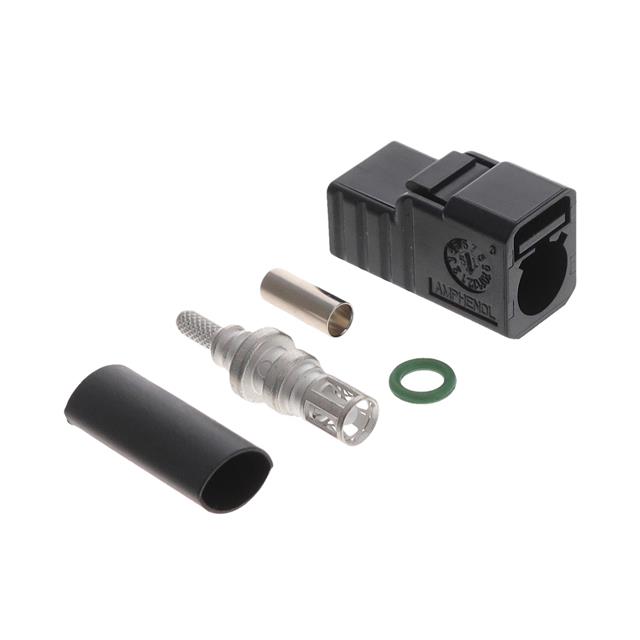

3FA1-NASJ-C01E0

Active

Amphenol RF

FAKRA SEALED STRAIGHT SINGLE JAC

Search across all available documentation for this part.

Active

Amphenol RF

FAKRA SEALED STRAIGHT SINGLE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	3FA1-NASJ-C01E0

Body Finish	Tin
Body Material	Phosphor Bronze
Cable Group	RG-174, 188, 316
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polybutylene Terephthalate (PBT)
Fastening Type	Latch Lock
Features	Code A
Frequency - Max [Max]	3 GHz
Housing Color	Jet, Black
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Mounting Type	Cable Group	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Plating	Contact Termination	Connector Style	Fastening Type	Ingress Protection	Impedance	Number of Ports	Center Contact Material	Frequency - Max [Max]	Housing Color	Body Finish	Shield Termination	Dielectric Material	Body Material
Amphenol RF 3FA1-NASJ-C01E0	Free Hanging (In-Line)	188 316 RG-174	Code A	-40 °C	105 ░C	Female Socket Jack	Gold	Solder	Fakra SMB	Latch Lock	IP67 - Dust Tight Waterproof	50 Ohms	1	Phosphor Bronze	3 GHz	Black Jet	Tin	Crimp	Polybutylene Terephthalate (PBT)	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.52

General part information

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
