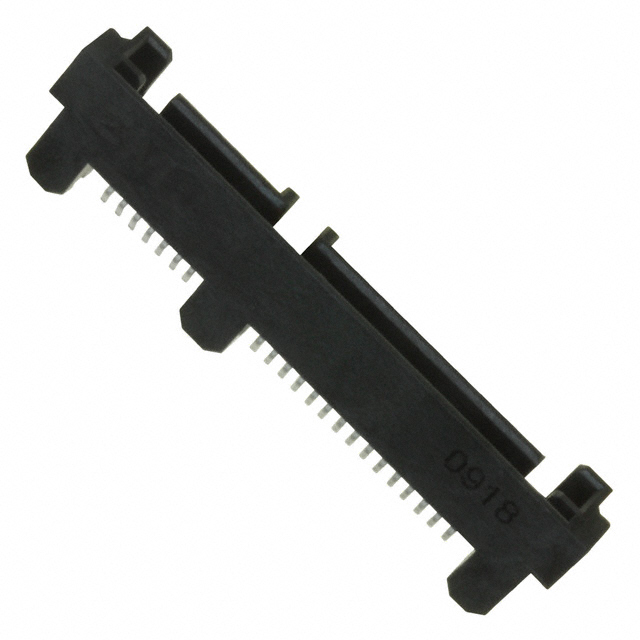

5622-6309-ML

Obsolete

3M (TC)

CONN SATA PLUG 22POS SLD PCB

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN SATA PLUG 22POS SLD PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Connector Type	Contact Finish	Termination	Connector Style	Features
3M (TC) 5622-4100-ML	0.76 Ám	30 Áin	22 positions	Through Hole Right Angle	SATA	Gold	Solder	Plug
3M (TC) 5622-2603-ML	0.76 Ám	30 Áin	22 positions	Through Hole	SATA	Gold	Press-Fit	Receptacle	Board Guide
3M (TC) 5622-720F-ML	0.76 Ám	30 Áin	22 positions	Through Hole Right Angle	SATA	Gold	Solder	Plug
3M (TC) 5622-1200-ML	0.76 Ám	30 Áin	22 positions	Surface Mount Right Angle	SATA	Gold	Solder	Receptacle
3M (TC) 5622-2222-ML	0.76 Ám	30 Áin	22 positions	Surface Mount	SATA	Gold	Solder	Receptacle	Flange
3M (TC) 5622-6309-ML	0.76 Ám	30 Áin	22 positions	Board Edge Straddle Mount	SATA	Gold	Solder	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position SATA Plug Connector Solder Board Edge, Straddle Mount

Technical documentation and resources
