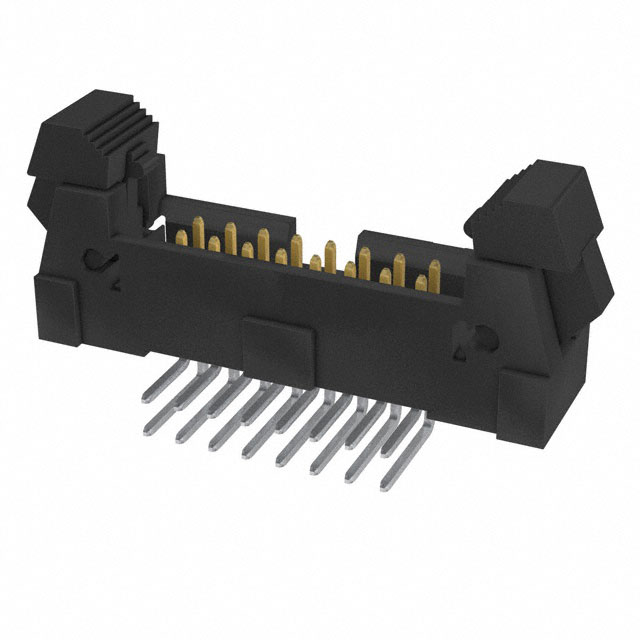

EHT-108-01-S-D-RA-SR

Active

Samtec Inc.

CONN HEADER R/A 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-108-01-S-D-RA-SR

Active

Samtec Inc.

CONN HEADER R/A 16POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-108-01-S-D-RA-SR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Strain Relief, Keying Slot
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-108 Series

Headers & Wire Housings 2.00 mm Shrouded IDC Ejector Header

Part	Contact Shape	Number of Positions	Number of Rows	Insulation Material	Contact Type	Contact Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Connector Type	Features	Insulation Height [z]	Insulation Height [z]	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Fastening Type	Insulation Color	Contact Finish - Post	Style	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shrouding	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Positions
Samtec Inc. EHT-108-01-S-D-RA-SR	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Keying Slot Strain Relief	0.3 in	7.62 mm	0.079 in	2 mm	Solder	0.12 in	3.05 mm	Through Hole Right Angle	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in
Samtec Inc. EHT-108-01-S-D-SM-LC-K	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Board Lock Keying Slot Pick and Place			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm
Samtec Inc. EHT-108-01-S-D-05	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze		-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Keying Slot			0.079 in	2 mm	Solder			Through Hole	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm	15	0.114 in	2.9 mm
Samtec Inc. EHT-108-01-S-D-SM-SR	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Keying Slot Strain Relief			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm
Samtec Inc. EHT-108-01-SM-D-SM-LC-P	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Board Lock Keying Slot Pick and Place			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm
Samtec Inc. EHT-108-01-SM-D-SM-K-TR	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Keying Slot Pick and Place			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm
Samtec Inc. EHT-125-01-L-D-SM-SR-K-TR	Square		2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Keying Slot Pick and Place Strain Relief			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	15 µin	0.38 µm	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm				50
Samtec Inc. EHT-108-01-T-D-SM-LC	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Board Lock Keying Slot			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A				Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm
Samtec Inc. EHT-108-01-S-D-SM-16-TR	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze		-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Keying Slot			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm	15
Samtec Inc. EHT-108-01-S-D-SM-LC	Square	16	2	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	All	-55 °C	125 °C	0.079 in	2 mm	UL94 V-0	Header	Board Lock Keying Slot			0.079 in	2 mm	Solder			Surface Mount	Latch Lock/Eject Hooks	Black	Tin	Board to Cable/Wire	3 A	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	3.05 mm	0.12 in	0.37 in	9.4 mm
